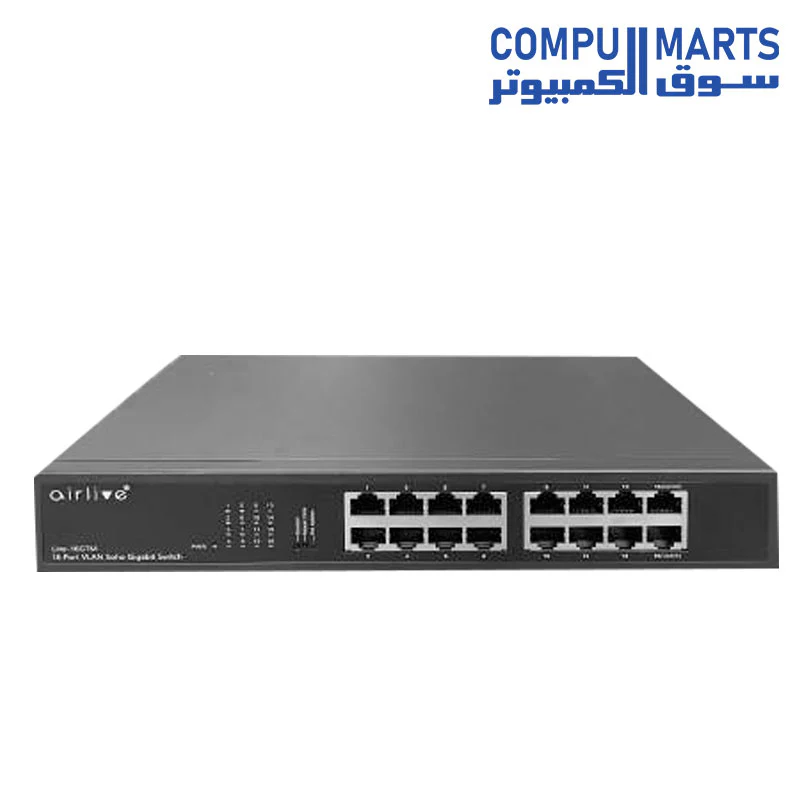

Airlive live-16 GTM 16-port SOHO Gigabit switch, VLAN, Plug and Play

Airlive live-16 GTM 16-port SOHO Gigabit switch, VLAN, Plug and Play

Hardware

• Device Interface:

16 x 10/100/1000Mbps RJ45, Auto MDI/MDI-X

• Standard

IEEE802.3u 100Base-TX

IEEE802.3ab Gigabit 1000Base-T

IEEE802.3x

• LED Indicators:

PWR (power supply), Link (Network Link)

• Lighting Surge Protection:

IEC61000-4-2 (ESD), IEC61000-4-5(Surge)

Power:CM± 4kV/DM± 2kV; Port: ± 4kV , ESD: ± 8kV

Contact discharge, ± 15kV Air discharge

• Mechanical

Metal

Switch Architecture | Performance

• Switching architecture: Store and Forward

Switch Capacity: Back-plan up to 32Gbps

Pack forward rate; 23.88Mpps

MAC Address: 8K

Jumbo Frame: 10K

Transfer mode: Store and forward

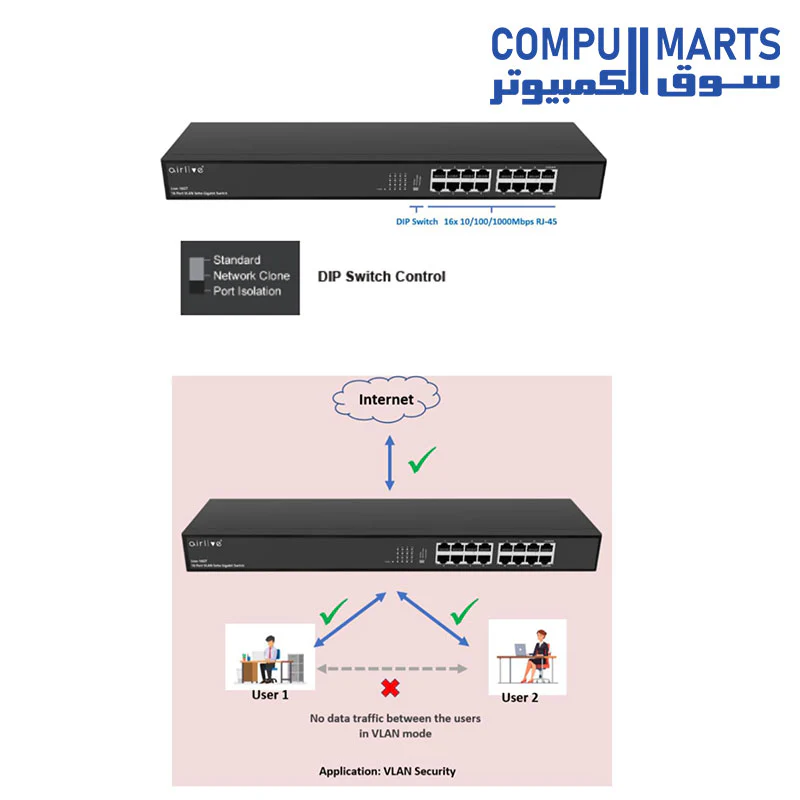

DIP Switch Control

• Standard: Normal mode, all port can

communicate with each other, the transmission

distance is within 100m, the transmission rate is

10M/100/1000M adaptive.

• Port Isolation/VLAN: Port isolation mode. In this

mode ports (1~14) cannot communicate with each

other and can only communicate with the UP-Link

port 15/16.

• Flow Control: This is a Flow Control switch. It is

only used when network congestion occurs, and

after the blocking occurs, the peer device sends a

packet, and the other device will reduce the

transmission rate.

• Note: Port Isolation and Network Flow Control

mode cannot be used at the same time
