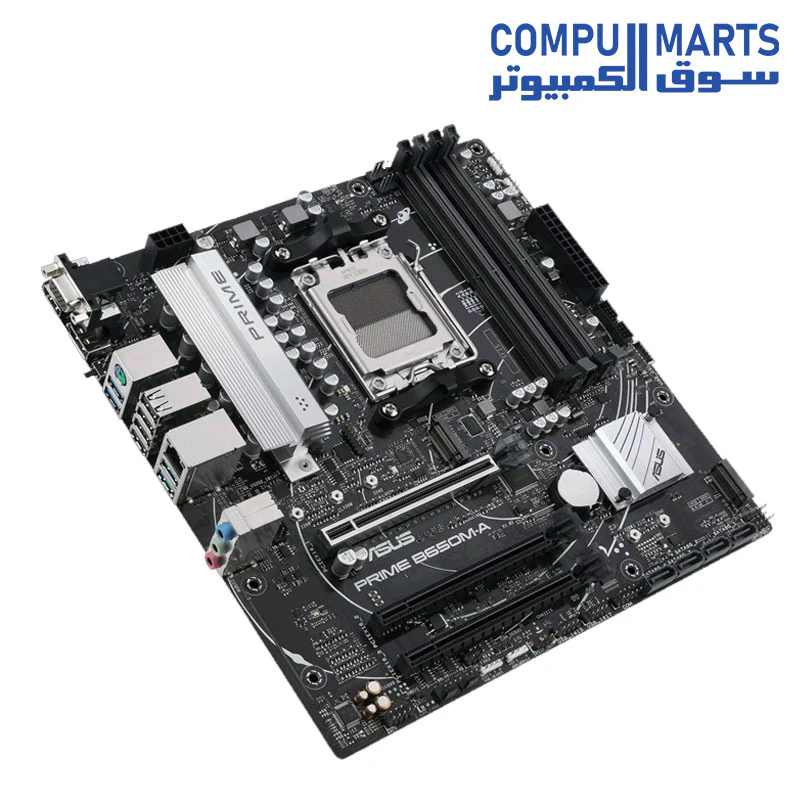

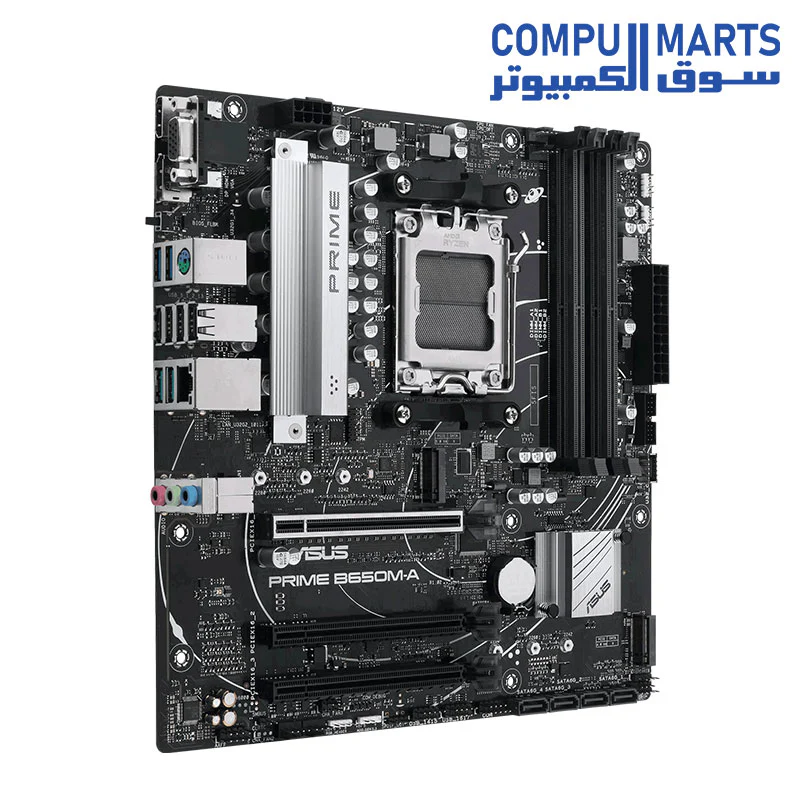

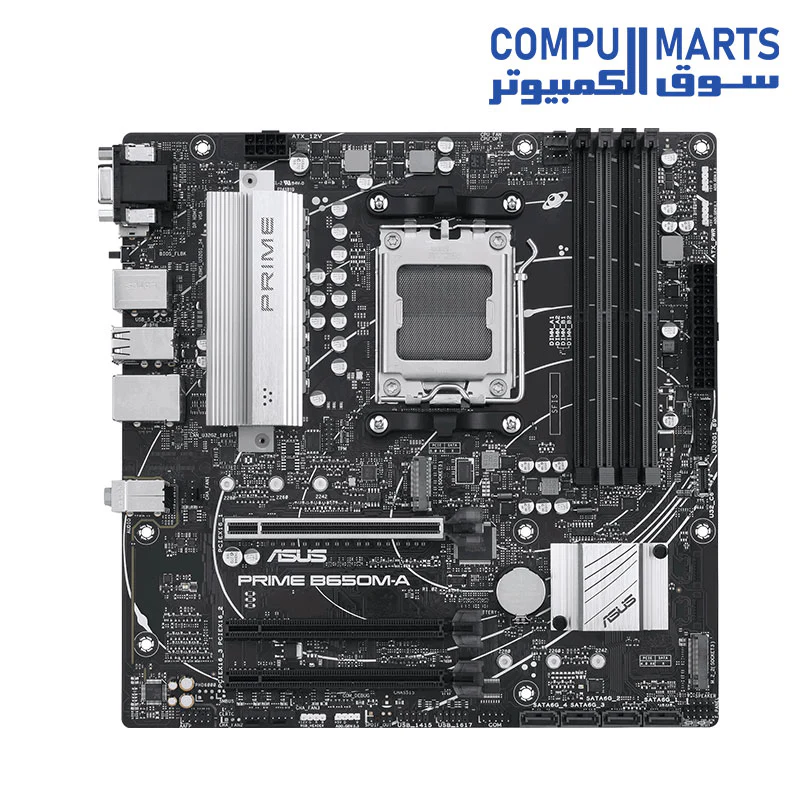

ASUS PRIME B650M-A Motherboard
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B650M-A |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max 128GB DDR5 (Up to 5600+ OC), Dual Channel, EXPO Support |
| Graphics Outputs | 1 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 1 x VGA |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode), 2 x PCIe 4.0 x16 (x1 mode) |
| Storage | 1 x M.2 PCIe 5.0 x4, 1 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| USB (Front) | 1 x USB 3.2 Gen 1 (Type-C), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio |
| Cooling Features | VRM Heatsink, PCH Heatsink, 5x 4-pin Fan Headers (Fan Xpert 2+) |
| Special Features | BIOS FlashBack™, Aura Sync RGB, ASUS 5X PROTECTION III |
| Form Factor | mATX (24.4 cm x 24.4 cm) |
$152.69
ASUS PRIME B650M-A Motherboard—
$152.69
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B650M-A |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000 & 7000 Series |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max 128GB DDR5 (Up to 5600+ OC), Dual Channel, EXPO Support |
| Graphics Outputs | 1 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 1 x VGA |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode), 2 x PCIe 4.0 x16 (x1 mode) |
| Storage | 1 x M.2 PCIe 5.0 x4, 1 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB (Rear) | 2 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| USB (Front) | 1 x USB 3.2 Gen 1 (Type-C), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio |
| Cooling Features | VRM Heatsink, PCH Heatsink, 5x 4-pin Fan Headers (Fan Xpert 2+) |
| Special Features | BIOS FlashBack™, Aura Sync RGB, ASUS 5X PROTECTION III |
| Form Factor | mATX (24.4 cm x 24.4 cm) |
