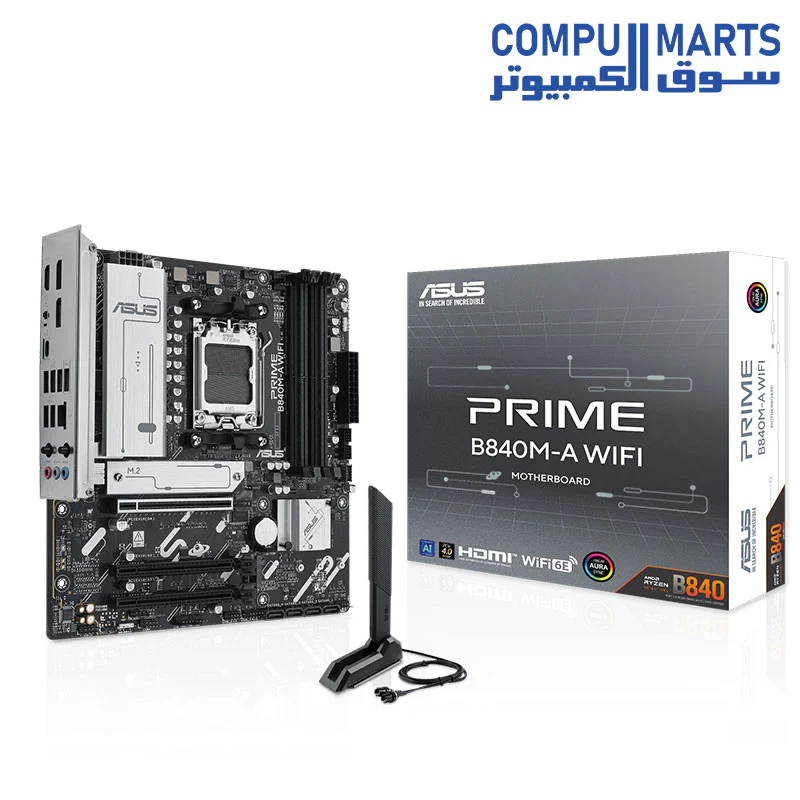

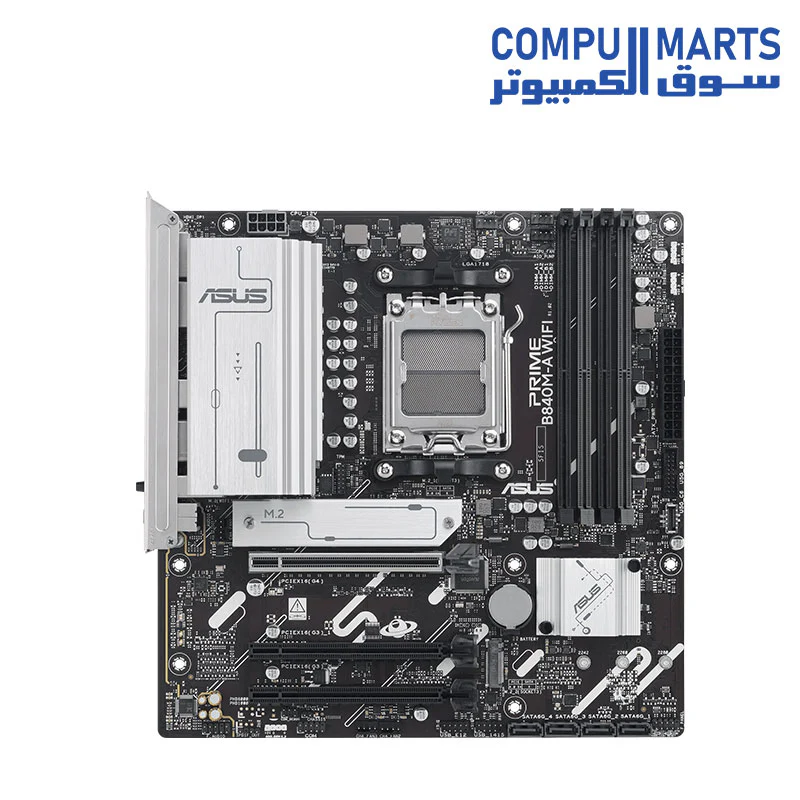

ASUS PRIME B840M-A WiFi Motherboard, AM5 socket, AMD Micro-ATX, DDR5
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B840M-A WIFI |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | AMD B840 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 up to 7600+MT/s (OC); ECC/Non-ECC, Dual-channel; OptiMem II |
| Graphics | 2 x DisplayPort (Max. 8K@30Hz); 1 x HDMI® port (Max. 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot; 2 x PCIe 3.0 x16 slots (support x1 mode) |
| Storage | 3 x M.2 slots; 4 x SATA 6Gb/s ports; Supports RAID 0/1/5/10 (Compatibility varies by CPU) |
| Networking | Realtek 2.5Gb Ethernet with ASUS LANGuard; Wi-Fi 6E (2x2); Bluetooth® 5.3 |
| USB (Rear) | 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-C®), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (supports 2 ports), support for 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; 24-bit/192 kHz playback support; Premium capacitors |
| Cooling Solutions | VRM Heatsink; M.2 Heatsink; 4-pin headers for CPU, AIO Pump, and 3 x Chassis Fans |
| Special Features | ASUS 5X PROTECTION III; Aura Sync RGB; BIOS FlashBack™; Pre-mounted I/O shield |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm) |
$45.81
Original: $152.69
-70%ASUS PRIME B840M-A WiFi Motherboard, AM5 socket, AMD Micro-ATX, DDR5—
$152.69
$45.81Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Model | ASUS PRIME B840M-A WIFI |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | AMD B840 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 up to 7600+MT/s (OC); ECC/Non-ECC, Dual-channel; OptiMem II |
| Graphics | 2 x DisplayPort (Max. 8K@30Hz); 1 x HDMI® port (Max. 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot; 2 x PCIe 3.0 x16 slots (support x1 mode) |
| Storage | 3 x M.2 slots; 4 x SATA 6Gb/s ports; Supports RAID 0/1/5/10 (Compatibility varies by CPU) |
| Networking | Realtek 2.5Gb Ethernet with ASUS LANGuard; Wi-Fi 6E (2x2); Bluetooth® 5.3 |
| USB (Rear) | 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-C®), 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 5Gbps (Type-C®), 1 x USB 5Gbps header (supports 2 ports), support for 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC; 24-bit/192 kHz playback support; Premium capacitors |
| Cooling Solutions | VRM Heatsink; M.2 Heatsink; 4-pin headers for CPU, AIO Pump, and 3 x Chassis Fans |
| Special Features | ASUS 5X PROTECTION III; Aura Sync RGB; BIOS FlashBack™; Pre-mounted I/O shield |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm) |
