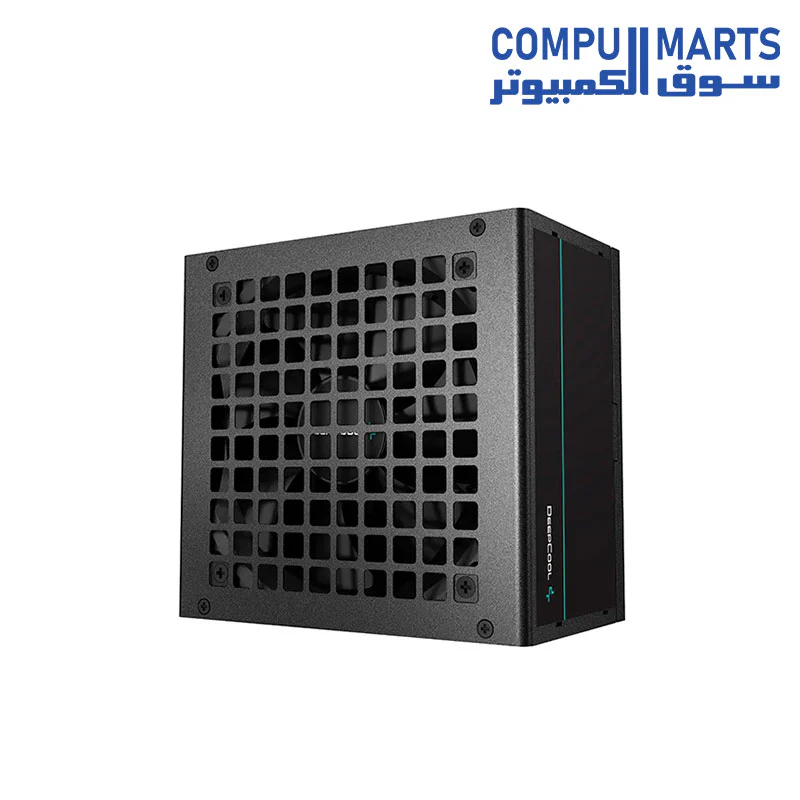

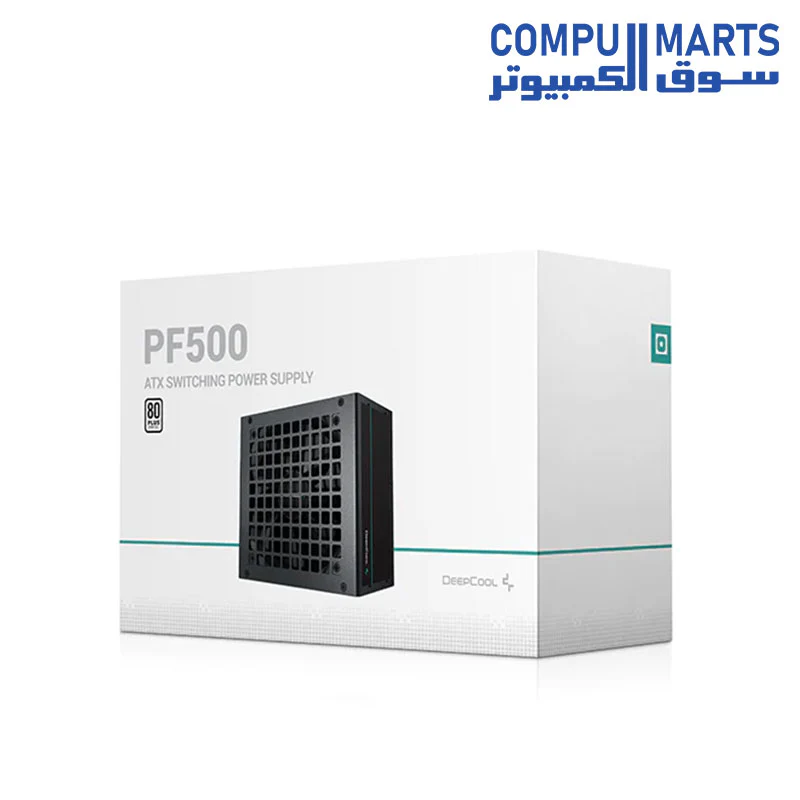

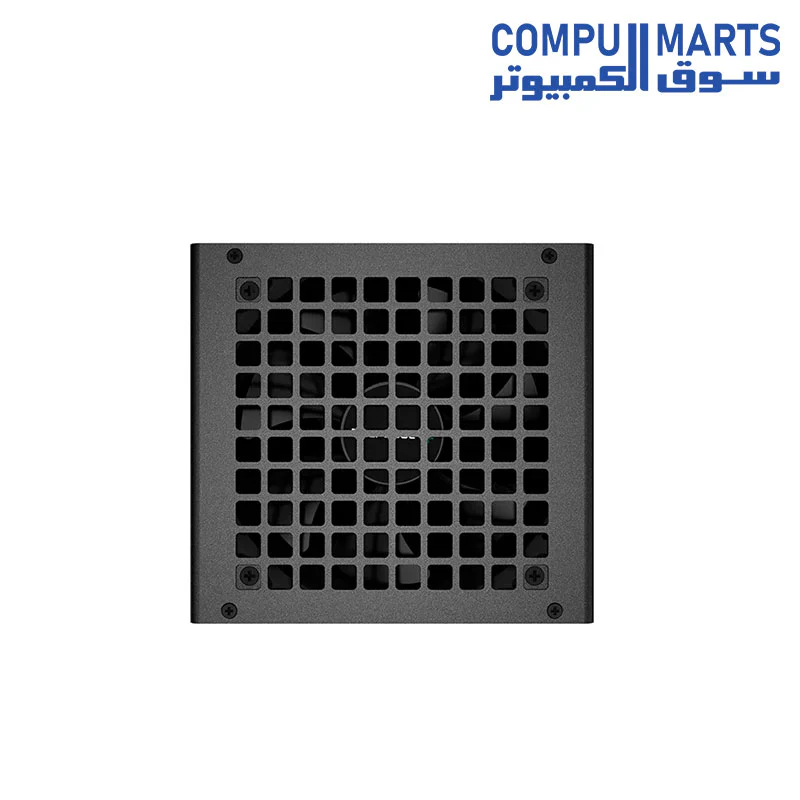

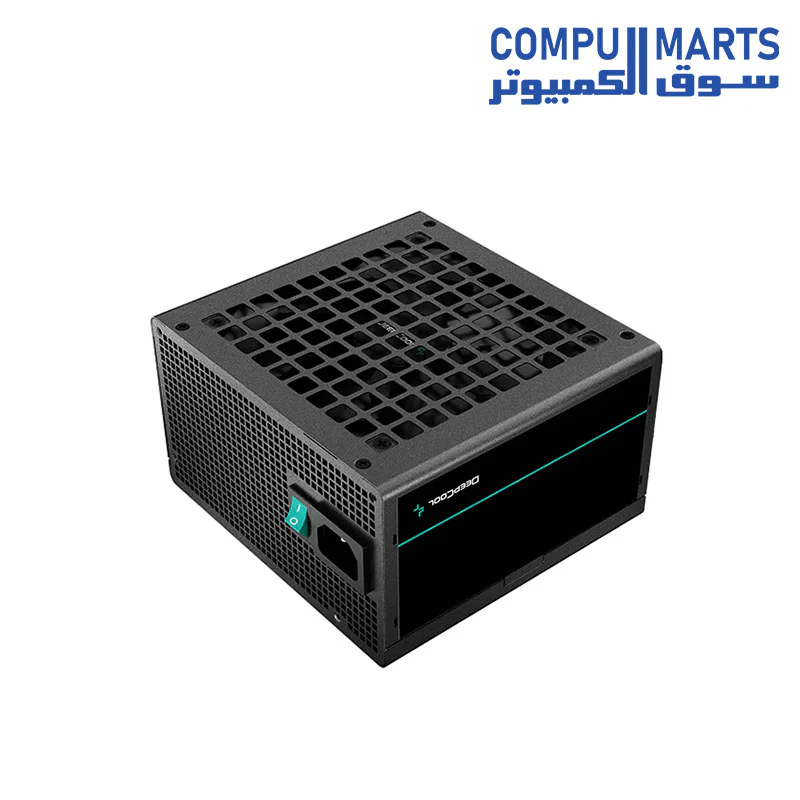

DEEPCOOL PF500 500 Watts PSU 80 Plus
| Category | Specification Details |
|---|---|
| Product Name | DeepCool PF500 500W PSU |
| Wattage | 500 Watts |
| Efficiency | 80 PLUS 230V EU Standard (ā„85% at Typical Load) |
| Type / Version | ATX12V V2.4 |
| Modularity | Non-Modular |
| Cabling | Flat Black Fixed Cables |
| Fan Specifications | 120mm Hypro Bearing Silent Fan |
| Internal Topology | Active PFC + Double Tube Forward |
| Capacitors | Taiwan Bulk Capacitor |
| Protection Suite | OPP, OVP, SCP, UVP (Over Power, Over Voltage, Short Circuit, Under Voltage) |
| Connectors | 1x 24-Pin ATX, 1x EPS (4+4) Pin, 2x PCIe (6+2) Pin, 6x SATA, 2x Peripheral (4-Pin) |
| Hold Up Time | ā„16ms (75% Load) |
| Dimensions (WxLxH) | 150 x 140 x 86 mm |
| Reliability (MTBF) | 100,000 Hours |
$32.43
DEEPCOOL PF500 500 Watts PSU 80 Plusā
$32.43
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Product Name | DeepCool PF500 500W PSU |
| Wattage | 500 Watts |
| Efficiency | 80 PLUS 230V EU Standard (ā„85% at Typical Load) |
| Type / Version | ATX12V V2.4 |
| Modularity | Non-Modular |
| Cabling | Flat Black Fixed Cables |
| Fan Specifications | 120mm Hypro Bearing Silent Fan |
| Internal Topology | Active PFC + Double Tube Forward |
| Capacitors | Taiwan Bulk Capacitor |
| Protection Suite | OPP, OVP, SCP, UVP (Over Power, Over Voltage, Short Circuit, Under Voltage) |
| Connectors | 1x 24-Pin ATX, 1x EPS (4+4) Pin, 2x PCIe (6+2) Pin, 6x SATA, 2x Peripheral (4-Pin) |
| Hold Up Time | ā„16ms (75% Load) |
| Dimensions (WxLxH) | 150 x 140 x 86 mm |
| Reliability (MTBF) | 100,000 Hours |
