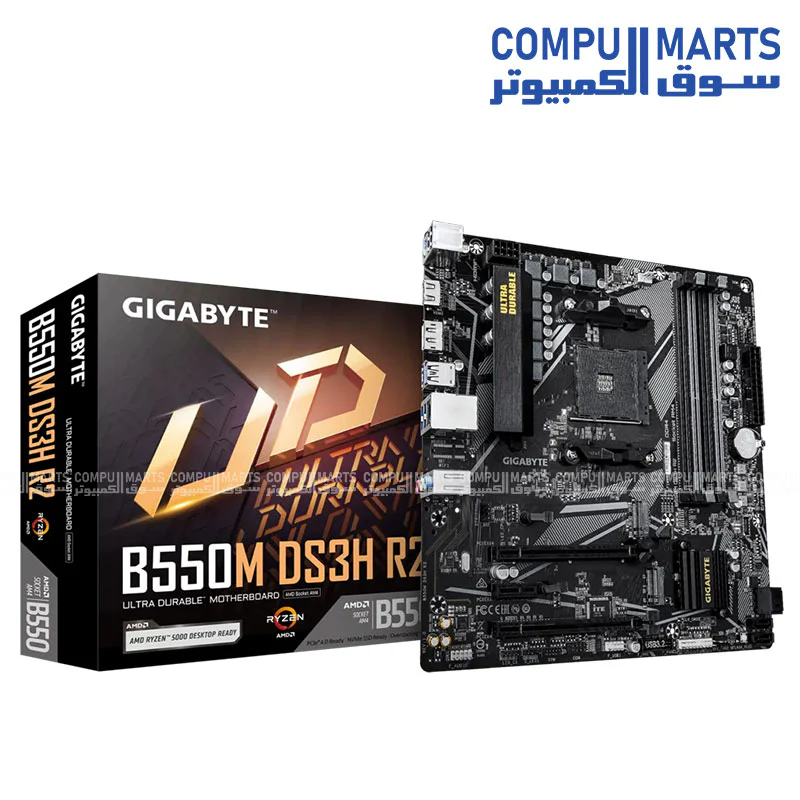

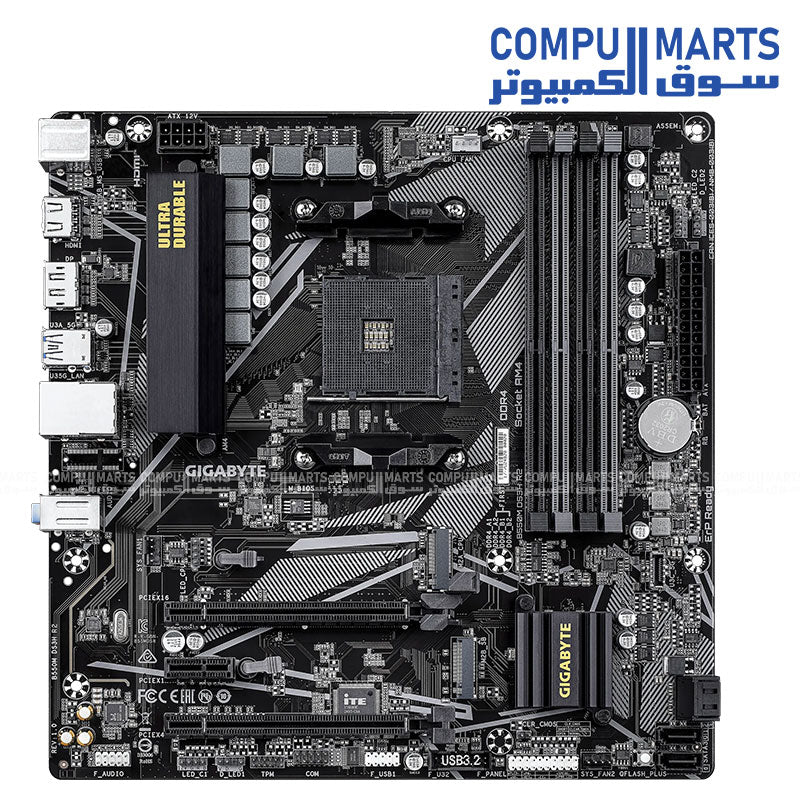

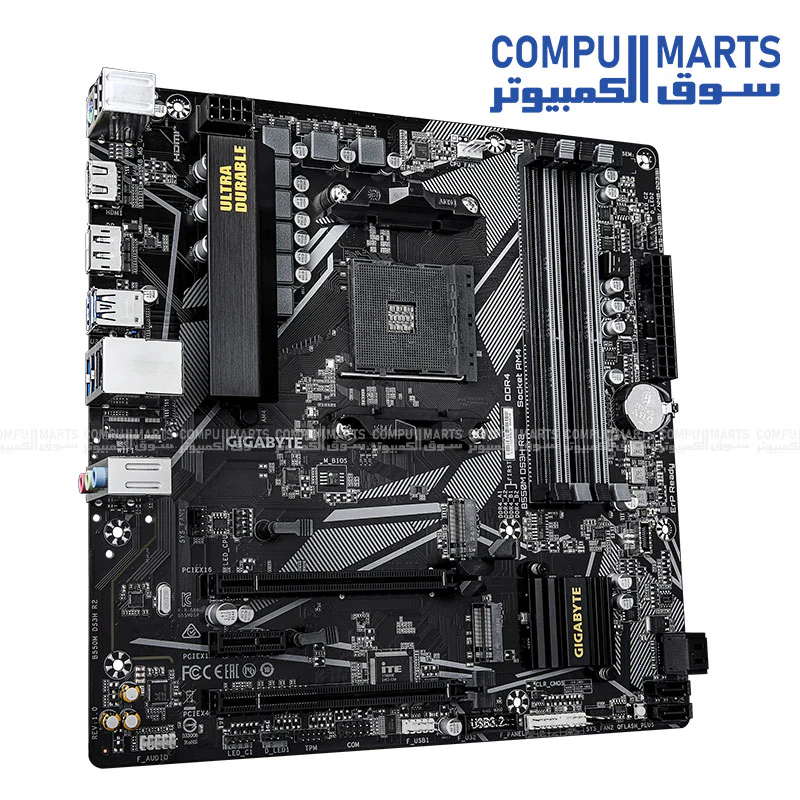

GIGABYTE B550M DS3H R2 – AMD AM4 Motherboard | DDR4 OC, PCIe 4.0, Dual M.2, Gigabit LAN

GIGABYTE B550M DS3H R2 – AMD AM4 Motherboard | DDR4 OC, PCIe 4.0, Dual M.2, Gigabit LAN

Category Specification Details
CPU Support AMD Socket AM4 for Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 G-Series, and 3000 Series Processors
Chipset AMD B550
Memory 4 x DDR4 DIMM (Up to 128 GB); Supports up to DDR4 4733(O.C.) / Dual Channel / ECC & Non-ECC Un-buffered / XMP
Onboard Graphics 1 x DisplayPort (5120x2880@60 Hz) | 1 x HDMI 2.1 (4096x2160@60 Hz); Max shared memory 16 GB
Audio Realtek® ALC1220 CODEC; High Definition Audio 2/4/5.1/7.1-channel; DSD Audio support
LAN Realtek® GbE LAN chip (10/100/1000 Mbps)
Expansion Slots 1 x PCIe x16 (PCIe 4.0 support with Ryzen 5000/3000); 1 x PCIe x16 (running at x4); 1 x PCIe x1
Storage 1 x M.2 (CPU - PCIe 4.0/3.0 x4); 1 x M.2 (Chipset - PCIe 3.0 x2); 4 x SATA 6Gb/s; RAID 0, 1, 10
USB Ports Back: 4 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 1 x USB Type-C™ (3.2 Gen 1), 2 x USB 3.2 Gen 1, 2 x USB 2.0

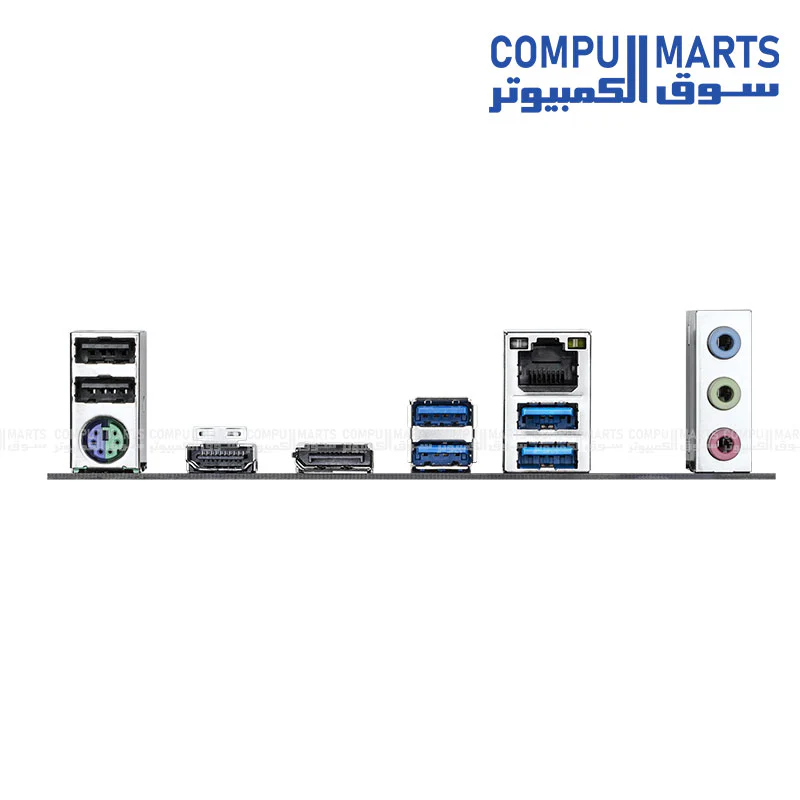

Back Panel I/O PS/2 Keyboard/Mouse, HDMI, DisplayPort, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x Audio Jacks
Internal I/O Q-Flash Plus button, 2 x ARGB headers, 2 x RGB headers, CPU Cooler LED header, TPM header, Serial port header
Form Factor Micro ATX Form Factor (24.4cm x 24.4cm)
OS Support Windows 11 64-bit / Windows 10 64-bit
$27.20

Original: $90.66

-70%
GIGABYTE B550M DS3H R2 – AMD AM4 Motherboard | DDR4 OC, PCIe 4.0, Dual M.2, Gigabit LAN—

$90.66

$27.20

Product Information

Shipping & Returns

Description

Category Specification Details
CPU Support AMD Socket AM4 for Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 G-Series, and 3000 Series Processors
Chipset AMD B550
Memory 4 x DDR4 DIMM (Up to 128 GB); Supports up to DDR4 4733(O.C.) / Dual Channel / ECC & Non-ECC Un-buffered / XMP
Onboard Graphics 1 x DisplayPort (5120x2880@60 Hz) | 1 x HDMI 2.1 (4096x2160@60 Hz); Max shared memory 16 GB
Audio Realtek® ALC1220 CODEC; High Definition Audio 2/4/5.1/7.1-channel; DSD Audio support
LAN Realtek® GbE LAN chip (10/100/1000 Mbps)
Expansion Slots 1 x PCIe x16 (PCIe 4.0 support with Ryzen 5000/3000); 1 x PCIe x16 (running at x4); 1 x PCIe x1
Storage 1 x M.2 (CPU - PCIe 4.0/3.0 x4); 1 x M.2 (Chipset - PCIe 3.0 x2); 4 x SATA 6Gb/s; RAID 0, 1, 10
USB Ports Back: 4 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 1 x USB Type-C™ (3.2 Gen 1), 2 x USB 3.2 Gen 1, 2 x USB 2.0
Back Panel I/O PS/2 Keyboard/Mouse, HDMI, DisplayPort, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x Audio Jacks
Internal I/O Q-Flash Plus button, 2 x ARGB headers, 2 x RGB headers, CPU Cooler LED header, TPM header, Serial port header
Form Factor Micro ATX Form Factor (24.4cm x 24.4cm)
OS Support Windows 11 64-bit / Windows 10 64-bit
