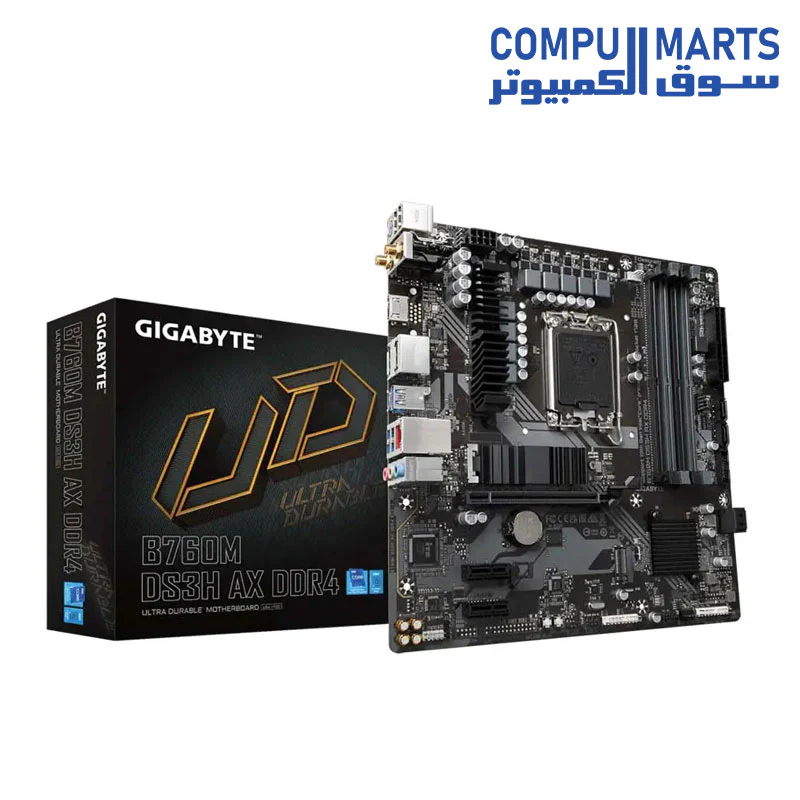

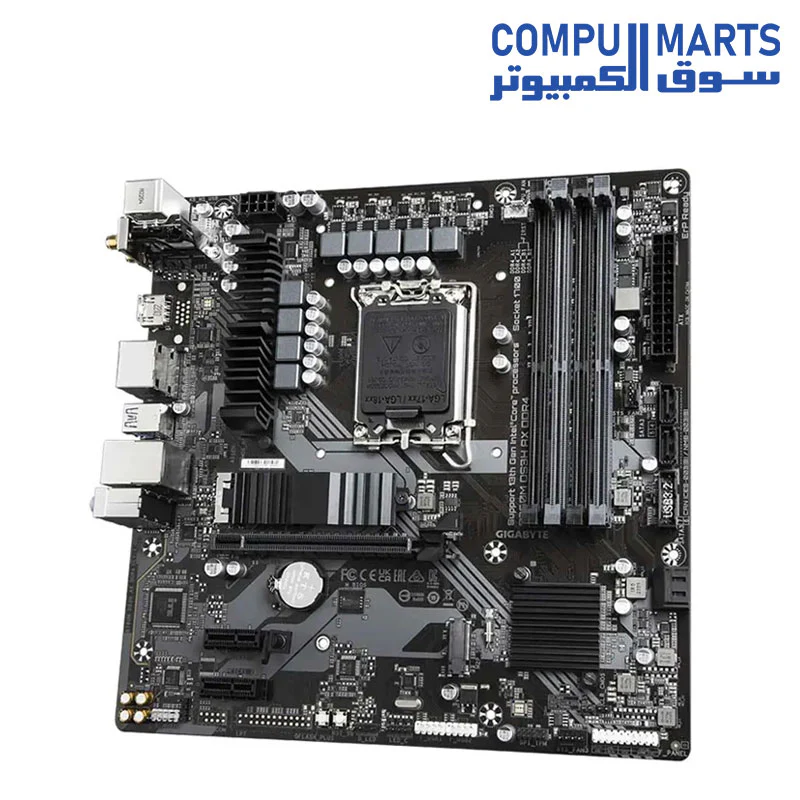

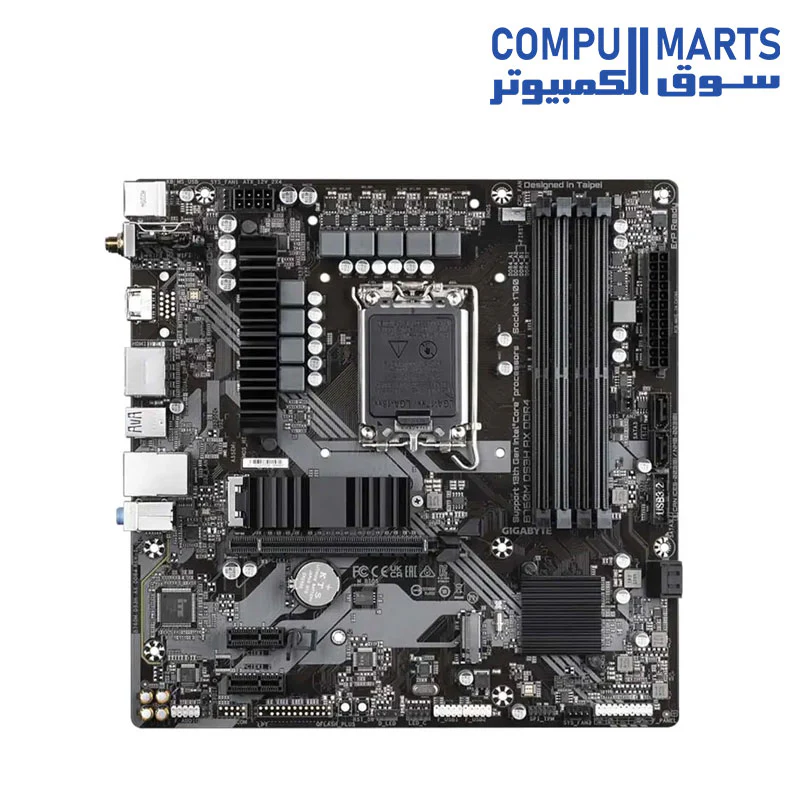

GIGABYTE B760M DS3H AX DDR4 Motherboard
| Category | Specification Details |
|---|---|
| Model | GIGABYTE B760M DS3H AX DDR4 |
| CPU Support | LGA1700 socket: Support for 13th and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5333(O.C.), Dual Channel, XMP Support |
| Graphics Interface | 1 x HDMI 2.0 (4K @60Hz), 2 x DisplayPort 1.2 (4K @60Hz) - Supports up to triple-display |
| Storage | 2 x M.2 PCIe 4.0 x4/x2 connectors, 4 x SATA 6Gb/s (RAID 0, 1, 5, 10) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| Wireless & BT | Wi-Fi 6E (802.11ax) 2.4/5/6 GHz, Bluetooth 5.2/5.3 (Revision dependent) |
| Ethernet | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Rear: 1 x USB-C 3.2 Gen 2, 3 x USB 3.2 Gen 1, 2 x USB 2.0 | Internal: USB 3.2 Gen 1 & USB 2.0 headers |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| Special Features | Q-Flash Plus, M.2 Thermal Guard, EZ-Latch, Smart Fan 6, Hybrid 6+2+1 Digital VRM |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
$127.88
GIGABYTE B760M DS3H AX DDR4 Motherboardā
$127.88
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Model | GIGABYTE B760M DS3H AX DDR4 |
| CPU Support | LGA1700 socket: Support for 13th and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5333(O.C.), Dual Channel, XMP Support |
| Graphics Interface | 1 x HDMI 2.0 (4K @60Hz), 2 x DisplayPort 1.2 (4K @60Hz) - Supports up to triple-display |
| Storage | 2 x M.2 PCIe 4.0 x4/x2 connectors, 4 x SATA 6Gb/s (RAID 0, 1, 5, 10) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots |
| Wireless & BT | Wi-Fi 6E (802.11ax) 2.4/5/6 GHz, Bluetooth 5.2/5.3 (Revision dependent) |
| Ethernet | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Rear: 1 x USB-C 3.2 Gen 2, 3 x USB 3.2 Gen 1, 2 x USB 2.0 | Internal: USB 3.2 Gen 1 & USB 2.0 headers |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| Special Features | Q-Flash Plus, M.2 Thermal Guard, EZ-Latch, Smart Fan 6, Hybrid 6+2+1 Digital VRM |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
