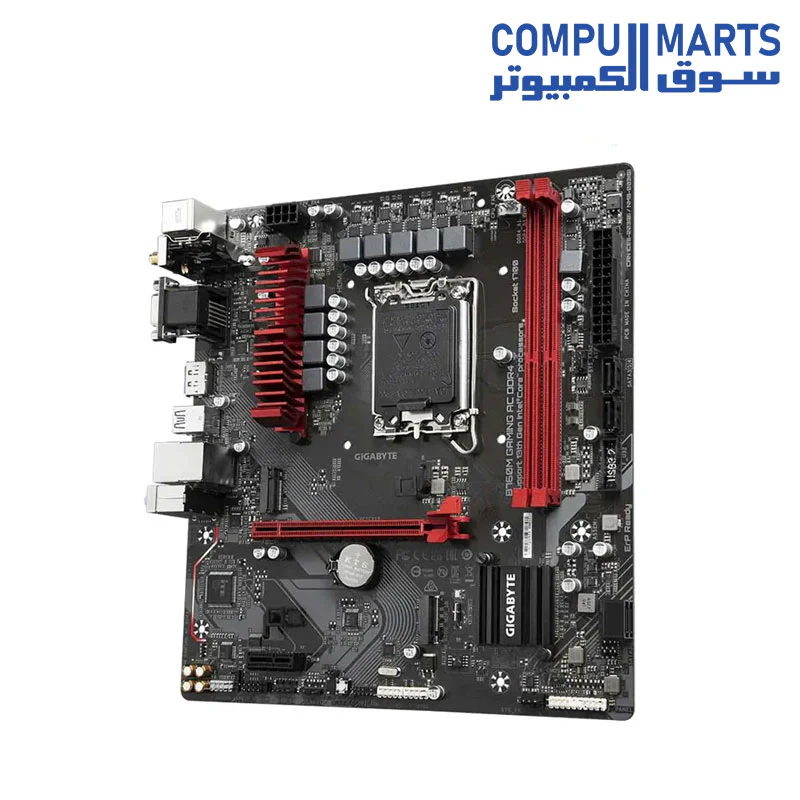

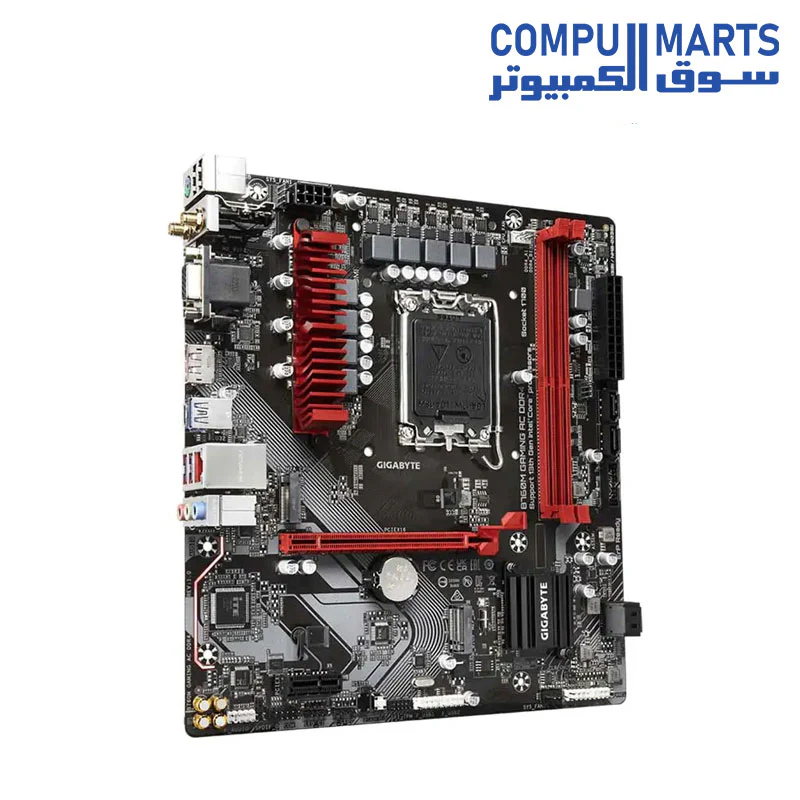

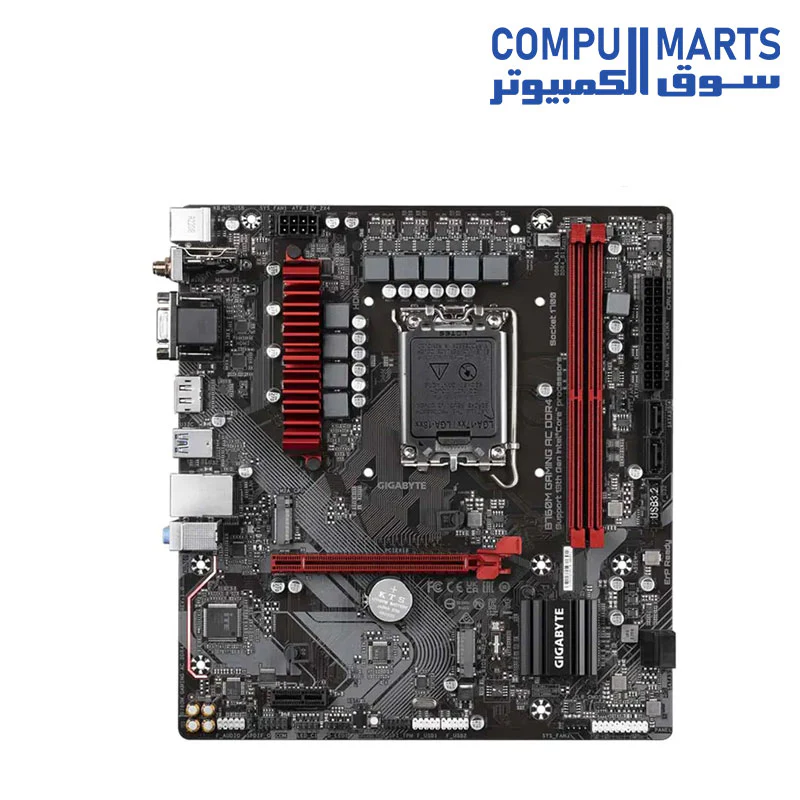

GIGABYTE B760M GAMING AC DDR4 Motherboard

 GIGABYTE B760M GAMING AC DDR4 Motherboard

• Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors

• Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution

• Dual Channel DDR4：2 DIMMs XMP Memory Module Support

• Next Generation Storage：2 PCIe 4.0 x4 M.2 Connectors

• EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design

• Fast Networks：2.5GbE LAN & Wi-Fi 802.11ac

• Extended Connectivity：Rear USB-C 5Gb/s, DP, HDMI, D-Sub

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• CPU

  1. LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  2. L3 cache varies with CPU

  (Please refer “CPU Support List” for more information.)

• Chipset

  1. Intel B760 Express Chipset

• Memory

  1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer Memory Support List for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160 60 Hz




      Support for HDMI 2.0 version and HDCP 2.3.

  3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304 60 Hz




      Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)
  Support for up to 3 displays at the same time

• Audio

  1. Realtek Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel




     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  4. Support for S/PDIF Out

• LAN

  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)

  1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band

  2. BLUETOOTH 4.2

  3. Support for 11ac wireless standard and up to 433 Gbps data rate

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  2. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:

  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

  3. 2 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 2.0 Hubs:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 3 x system fan headers

  5. 1 x addressable LED strip headers

  6. 1 x RGB LED strip headers

  7. 2 x M.2 Socket 3 connectors

  8. 4 x SATA 6Gb/s connectors

  9. 1 x front panel header

  10. 1 x front panel audio header

  11. 1 x S/PDIF Out header

  12. 1 x USB 3.2 Gen 1 header

  13. 2 x USB 2.0/1.1 headers

  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  15. 1 x serial port header

  16. 1 x Q-Flash Plus button

  17. 1 x reset jumper

  18. 1 x Clear CMOS jumper

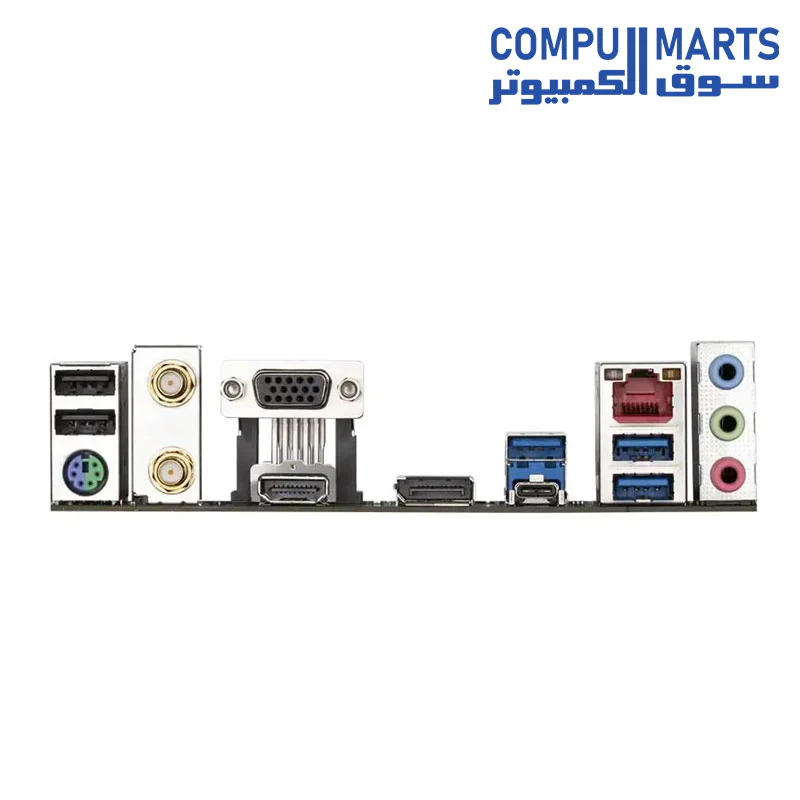

• Back Panel Connectors

  1. 2 x USB 2.0/1.1 ports

  2. 1 x PS/2 keyboard/mouse port

  3. 2 x SMA antenna connectors (1T1R)

  4. 1 x D-Sub port

  5. 1 x HDMI port

  6. 1 x DisplayPort

  7. 3 x USB 3.2 Gen 1 ports

  8. 1 x USB Type-C port, with USB 3.2 Gen 1 support

  9. 1 x RJ-45 port

  10. 3 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control

      Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1. 1 x 128 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for GIGABYTE Control Center (GCC)

      Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  2. Support for Q-Flash

  3. Support for Q-Flash Plus

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 24.4cm x 22.5cm
