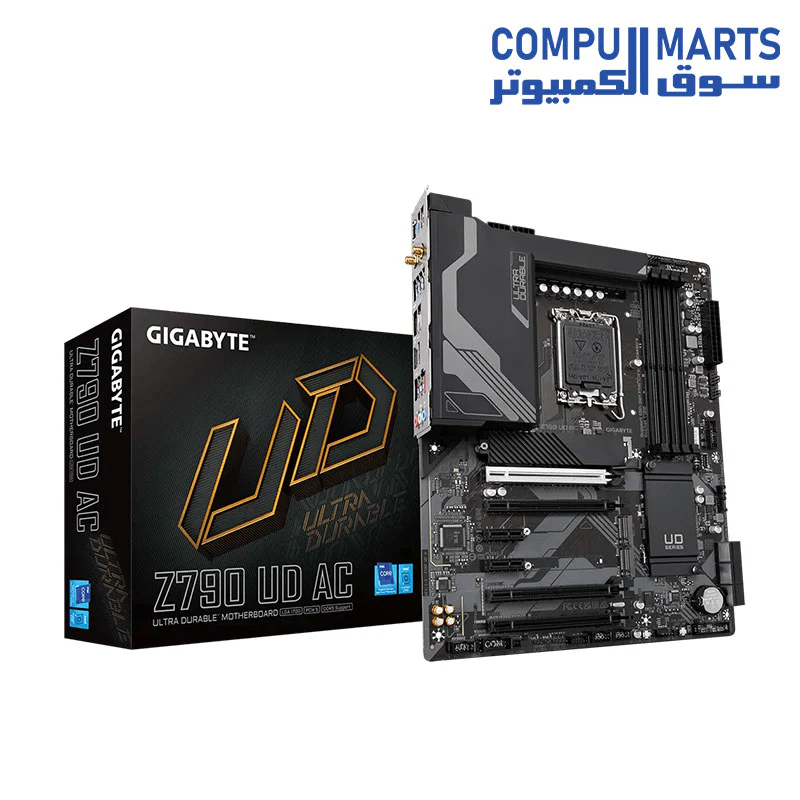

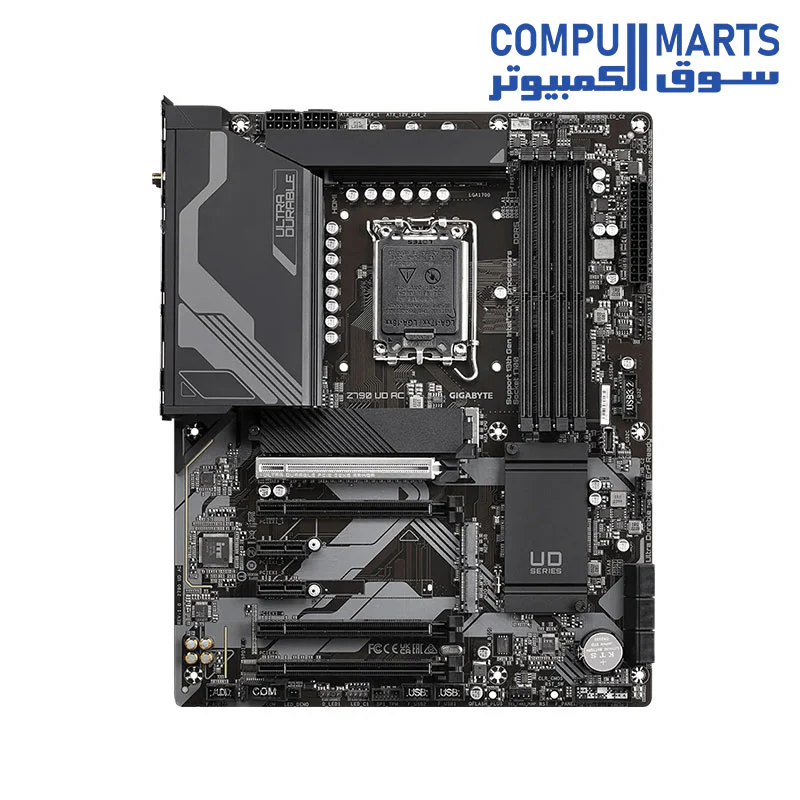

GIGABYTE Z790 UD AC DDR5 LGA 1700 Motherboard
| Category | Specification Details |
|---|---|
| Model | GIGABYTE Z790 UD AC (LGA 1700) |
| CPU Support | IntelĀ® Coreā¢ 14th, 13th, and 12th Gen Processors |
| Power Design | Twin 16+1+1 Phases Digital VRM Solution |
| Memory Support | 4x DDR5 DIMM, Up to 128GB (Supports up to 7600MHz O.C.) |
| Expansion Slots | 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 2x PCIe 3.0 x1 |
| Storage | 3x M.2 PCIe 4.0 x4 connectors | 6x SATA 6Gb/s |
| Networking | RealtekĀ® 2.5GbE LAN | Wi-Fi 802.11ac | Bluetooth 4.2 |

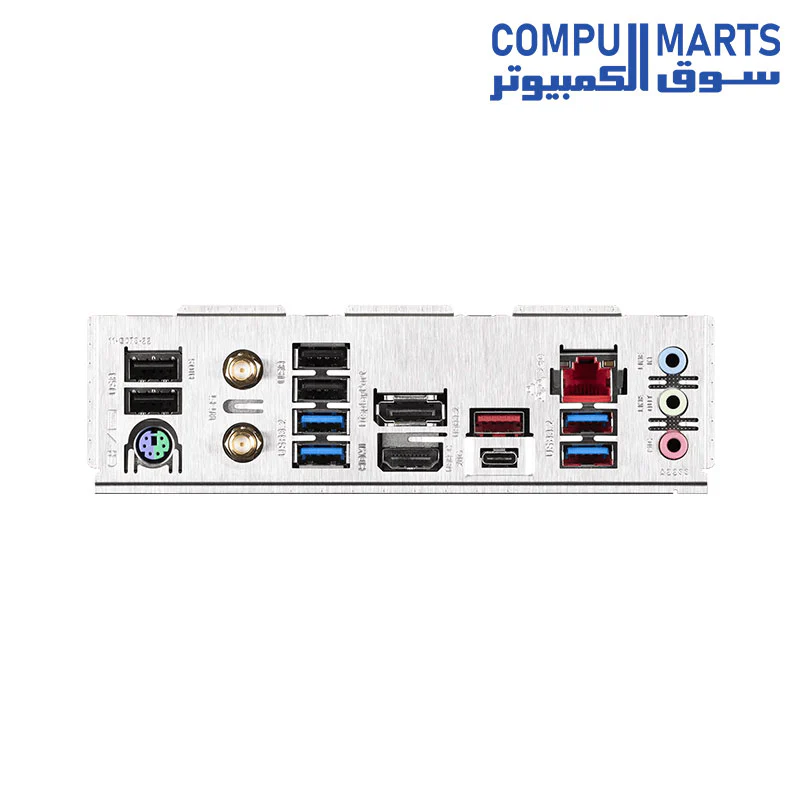

| USB Ports (Rear) | 1x USB-C 3.2 Gen 2x2 (20Gb/s) | 1x USB 3.2 Gen 2 | 4x USB 3.2 Gen 1 | 4x USB 2.0 |
| Display Outputs | 1x HDMI 2.0 (4K @60Hz) | 1x DisplayPort 1.2 |
| Audio | RealtekĀ® High Definition Audio (Up to 7.1 Channel) |
| Cooling & Safety | Smart Fan 6 | M.2 Thermal Guard | Q-Flash Plus (BIOS Update) |
| Form Factor | ATX (30.5cm x 24.4cm) |
$233.80
GIGABYTE Z790 UD AC DDR5 LGA 1700 Motherboardā
$233.80
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Model | GIGABYTE Z790 UD AC (LGA 1700) |
| CPU Support | IntelĀ® Coreā¢ 14th, 13th, and 12th Gen Processors |
| Power Design | Twin 16+1+1 Phases Digital VRM Solution |
| Memory Support | 4x DDR5 DIMM, Up to 128GB (Supports up to 7600MHz O.C.) |
| Expansion Slots | 1x PCIe 5.0 x16 | 1x PCIe 4.0 x4 | 2x PCIe 3.0 x1 |
| Storage | 3x M.2 PCIe 4.0 x4 connectors | 6x SATA 6Gb/s |
| Networking | RealtekĀ® 2.5GbE LAN | Wi-Fi 802.11ac | Bluetooth 4.2 |
| USB Ports (Rear) | 1x USB-C 3.2 Gen 2x2 (20Gb/s) | 1x USB 3.2 Gen 2 | 4x USB 3.2 Gen 1 | 4x USB 2.0 |
| Display Outputs | 1x HDMI 2.0 (4K @60Hz) | 1x DisplayPort 1.2 |
| Audio | RealtekĀ® High Definition Audio (Up to 7.1 Channel) |
| Cooling & Safety | Smart Fan 6 | M.2 Thermal Guard | Q-Flash Plus (BIOS Update) |
| Form Factor | ATX (30.5cm x 24.4cm) |
