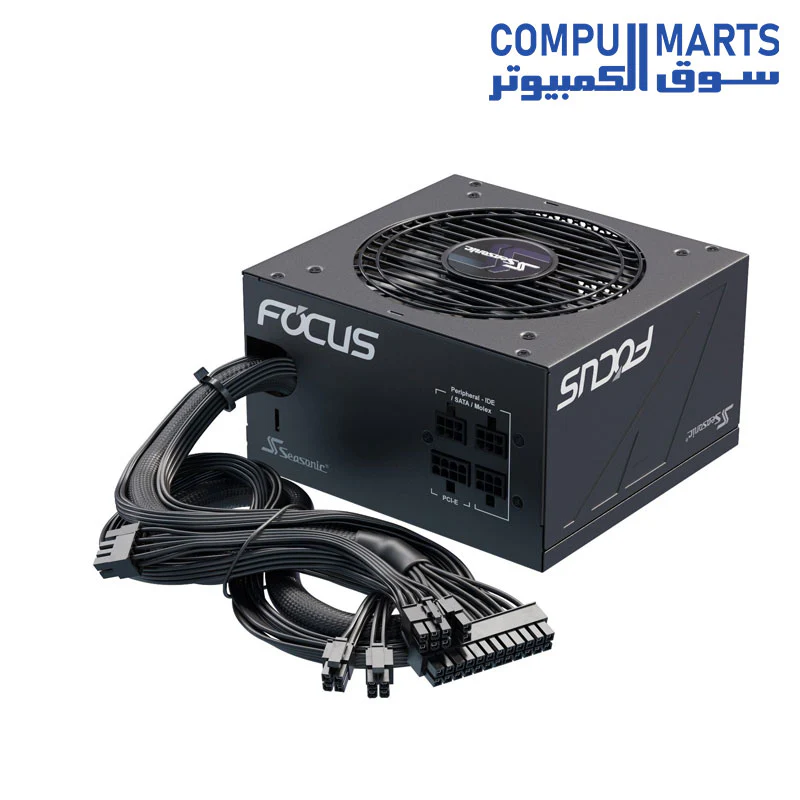

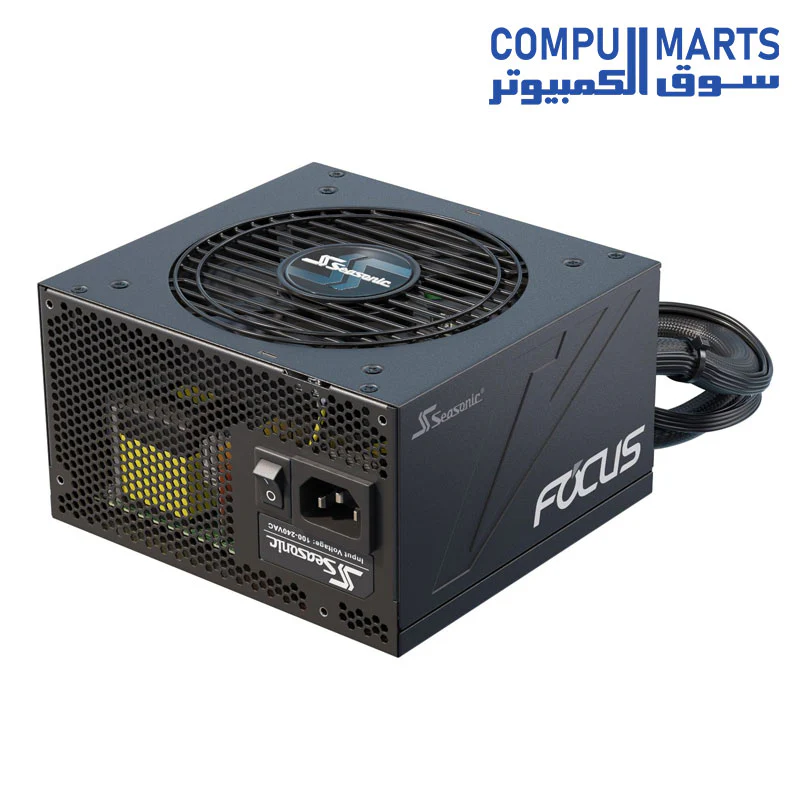

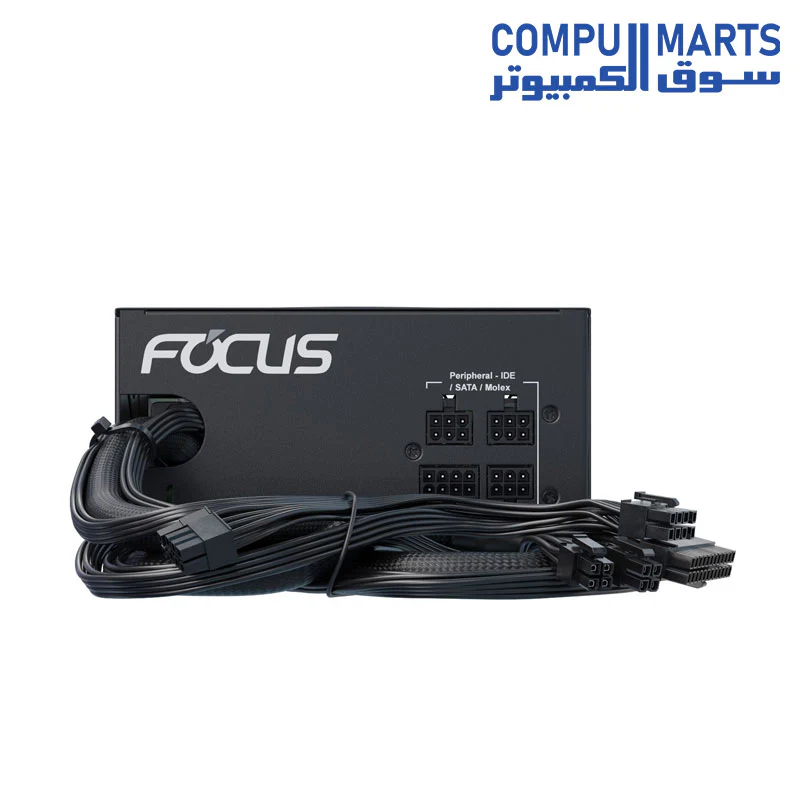

Seasonic FOCUS GM-750 750W 80 PLUS Gold Certified Semi-Modular

80PLUS

Gold

Form Factor

Intel ATX 12 V

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information

Fan Size

120 mm

Fan Control

S2FC

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information

Modularity

Semi-modular

Cable type

Webbed cables (attached)

Flat black cables(modular)

Electrical Features

Operating Temperature

0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF  25 °C, excl. fan

100,000 hours

AC Input

Full Range

Protection

OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

Safety and EMC

cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance

Energy Star, RoHS, WEEE, ErP Lot 6, REACH

AC Input

Voltage: 100 V - 240 V

Current: 12 - 6 A

Frequency: 50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

20 A

20 A

70 A

0.3 A

3 A

100 W

840 W

3.6 W

15 W

Total continuous power

850 W
