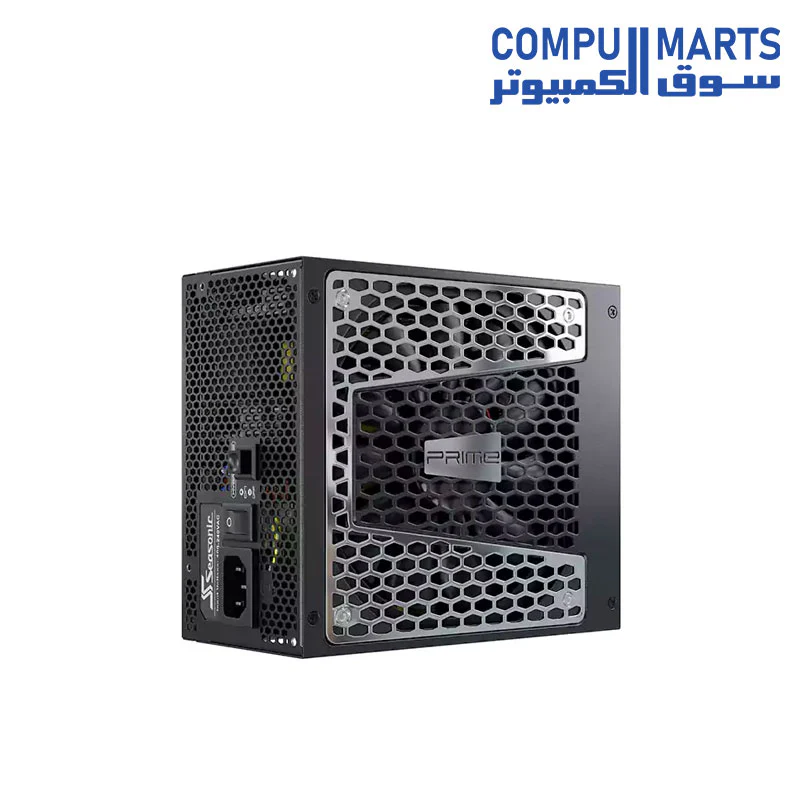

Seasonic PRIME PX-750 750W 80 PLUS Platinum Certified Full Modular Power Supply
Seasonic PRIME PX-750 750WĀ 80 PLUSĀ Platinum Certified Full Modular Power Supply
Ā
Category |
Desktop |
Subcategory |
Power Supply |
Brand |
Seasonic |
Model |
PX-750 |
POWER OF SUPPLY POWER |
750W |
EFFICIENCY RATING |
80+ PlatinumCertifiedĀ |
MODULAR |
Full |
Technical Specifications |
||
|---|---|---|
80PLUS |
Platinum |
|
Cybenetics Efficiency Level |
TBA |
|
Cybenetics Noise Level |
TBA |
|
Form Factor |
Intel ATX 12 V |
|
Dimensions |
210 mm (L) x 150 mm (W) x 86 mm (H) |
|
Fan Information |
Fan Size |
135 mm |
Fan Control |
Premium Hybrid Fan Control |
|
Fan Bearing |
Fluid Dynamic Bearing |
|
Life Expectancy |
50,000 hours at 40 Ā°C, 15 % - 65 % RH |
|
Cable Information |
Modularity |
Fully Modular |
Cable type |
Flat black cables |
|
Electrical Features |
Operating Temperature |
0 - 50 Ā°C |
MTBF 25 Ā°C, excl. fan |
150,000 hours |
|
AC Input |
Full Range |
|
Protection |
OPP, OVP, UVP, OCP, OTP, SCP |
|
Safety and Environmental |
Safety and EMC |
cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
Environmental Compliance |
Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
|
|
Power Output
|
||||||
|---|---|---|---|---|---|---|
AC Input |
Voltage: 100 V - 240 V |
|||||
Current: 15 - 10 A |
||||||
Frequency: 50 Hz - 60 Hz |
||||||
DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power |
25 A |
25 A |
133.3 A |
0.5 A |
3 A |
|
125 W |
1600 W |
6 W |
15 W |
|||
Total Continuous Power |
1600 W 115ā240Vac, 1300 W 100-240 Vac |
|||||
Ā
$64.47
Original: $214.89
-70%Seasonic PRIME PX-750 750W 80 PLUS Platinum Certified Full Modular Power Supplyā
$214.89
$64.47Product Information
