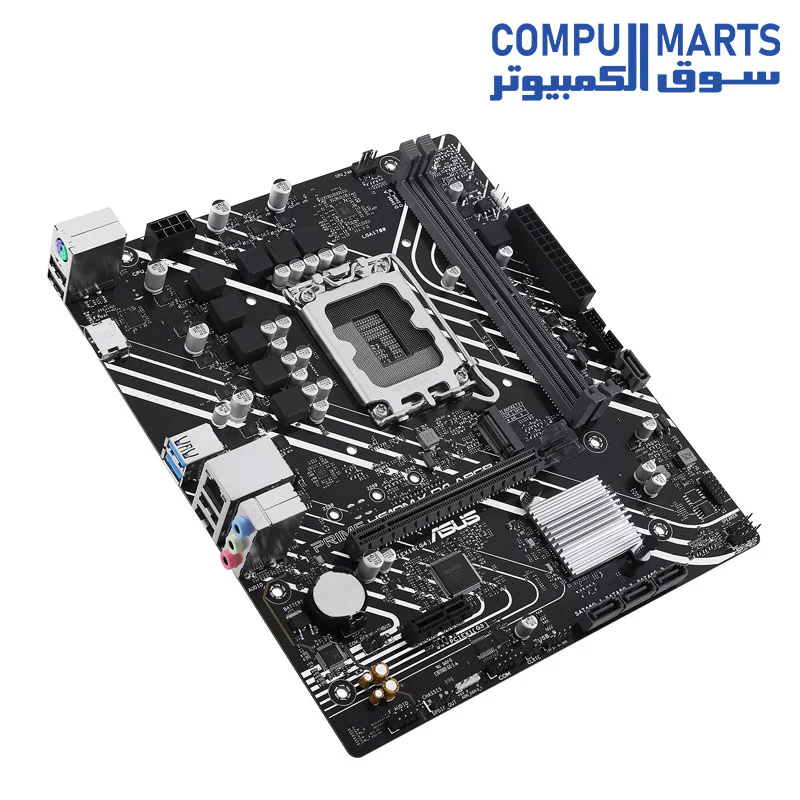

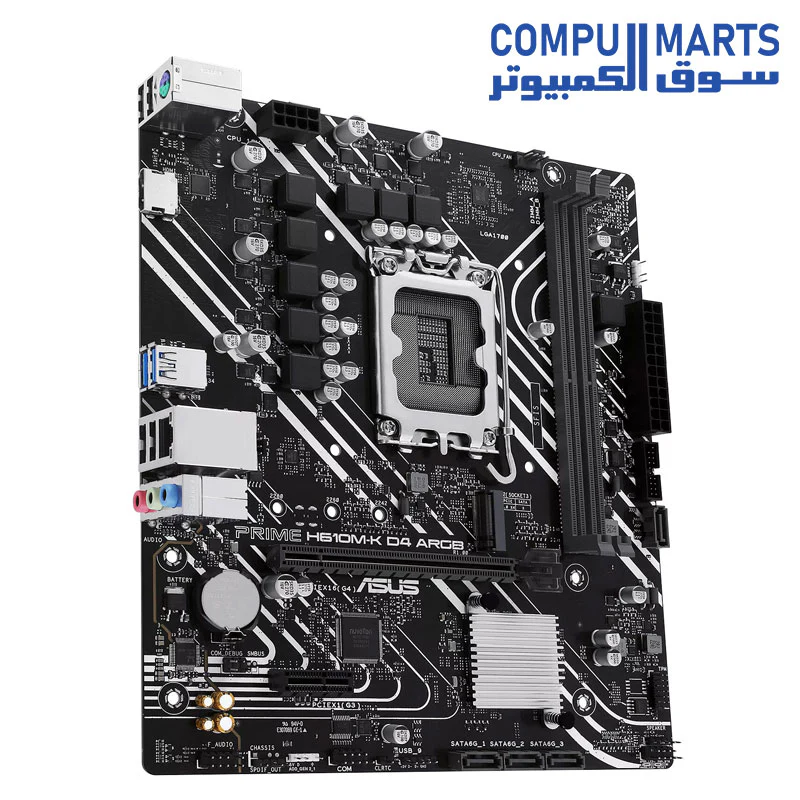

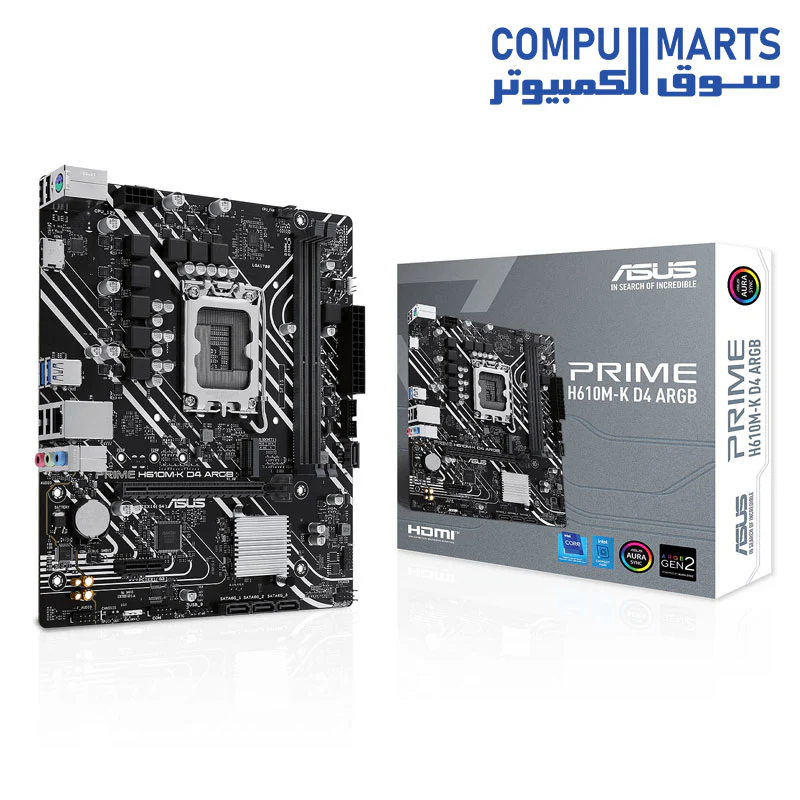

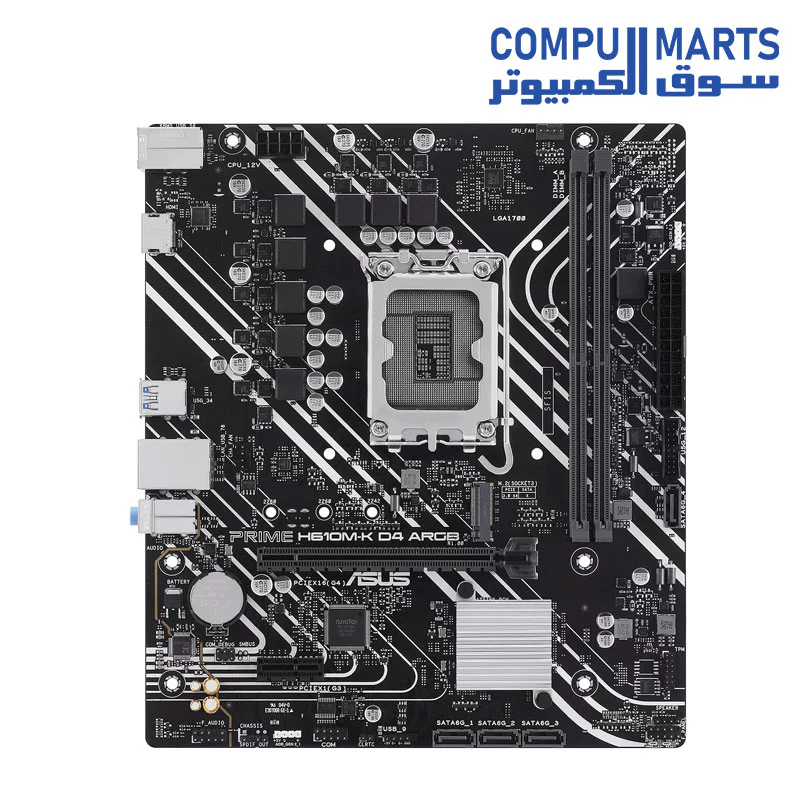

ASUS PRIME H610M-K D4 ARGB Motherboard
| Category | Specification Details |
|---|---|
| Socket Support | Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors |
| Connectivity | Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 5Gbps support |
| Cooling | Comprehensive Cooling: PCH heatsink and Fan Xpert |
| RGB Lighting | Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware |
| Audio Processing | Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences |
| Model | PRIME H610M-K D4 ARGB |
| CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors. Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 Chipset |
| Memory | 2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory. Dual channel memory architecture. Supports Inte Extreme Memory Profile (XMP) memory module. Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. |
| Graphics | 1 x HDMI port. Graphics specifications may vary between CPU types. Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot (supports x16 mode). Intel H610 Chipset: 1 x PCIe 3.0 x1 slot. |
| Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports. Intel H610 Chipset: M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode), 4 x SATA 6Gb/s ports. |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB (Rear) | Total 6 ports: 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| USB (Front) | Total 3 ports: 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Audio Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC. Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. Supports up to 24-Bit/192 kHz playback. |
| Audio Features | Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers. (Note: HD audio module in front panel required for 7.1 output) |
| Back Panel I/O Ports | 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI port, 1 x Realtek 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 keyboard/mouse combo port |
| Internal I/O (Cooling) | 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header |
| Internal I/O (Power) | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Internal I/O (Storage) | 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports |
| Internal I/O (Miscellaneous) | 2 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core, Stainless-steel back I/O). ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot). ASUS Thermal Solution (Aluminum heatsink design). Aura Sync (Addressable Gen 2 headers). |
| Software Features | ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert, Two-Way AI Noise Cancelation), AI Suite 3 (EPU, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial). |
| UEFI BIOS | ASUS EZ DIY: |
