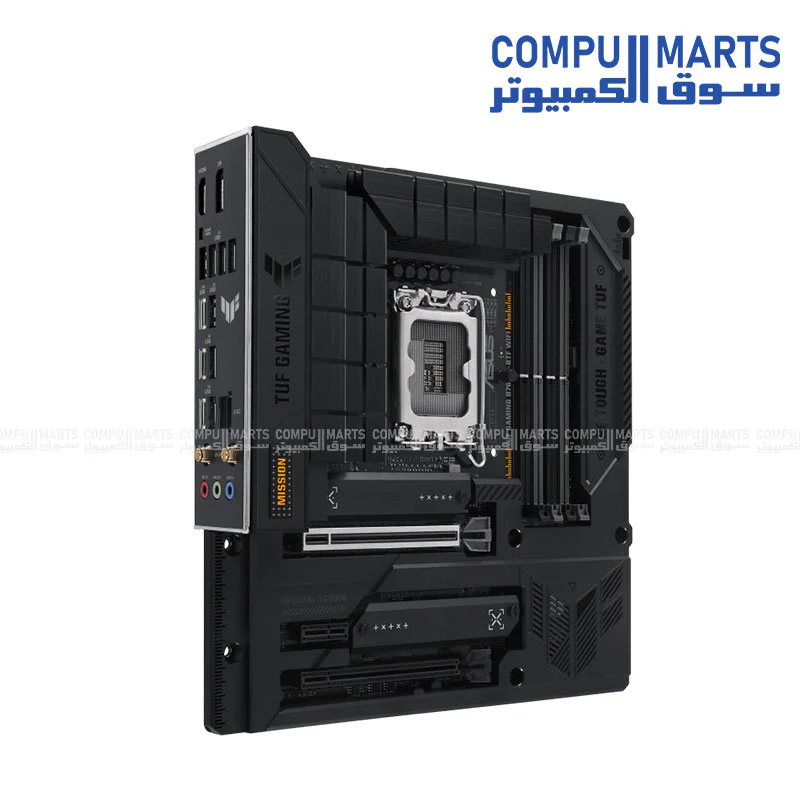

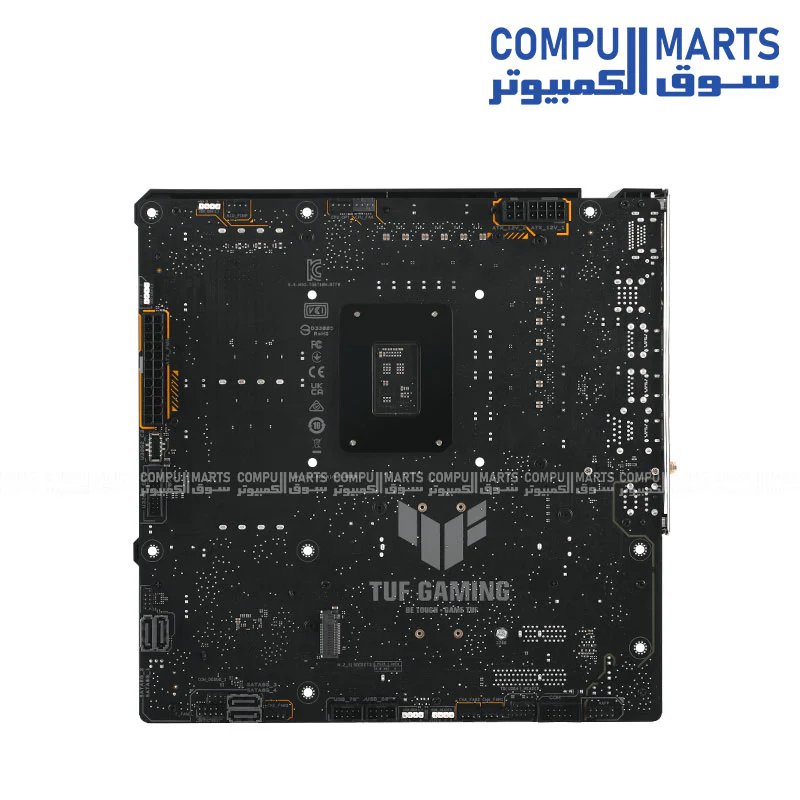

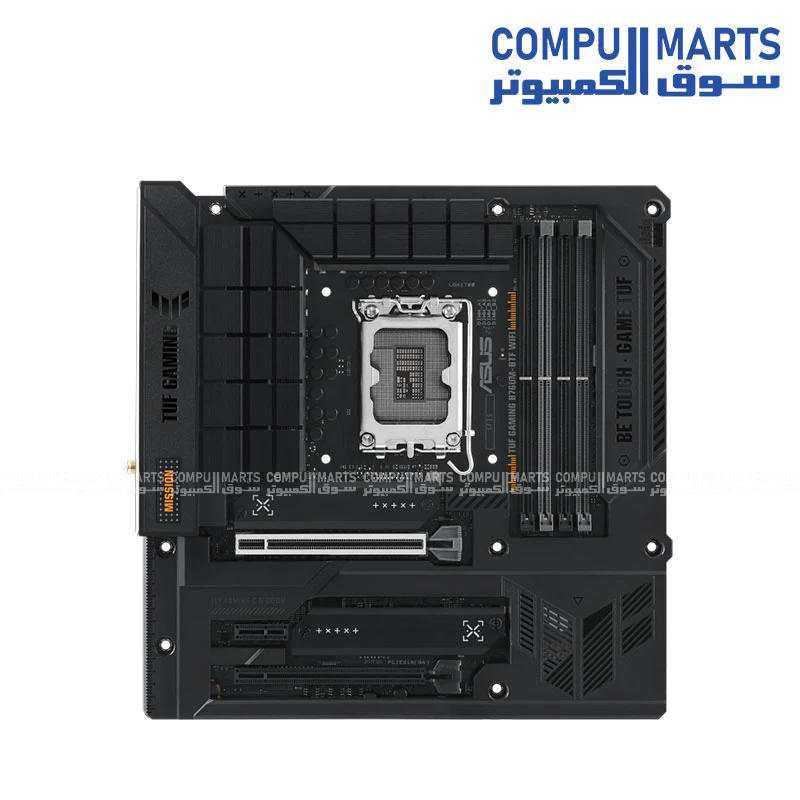

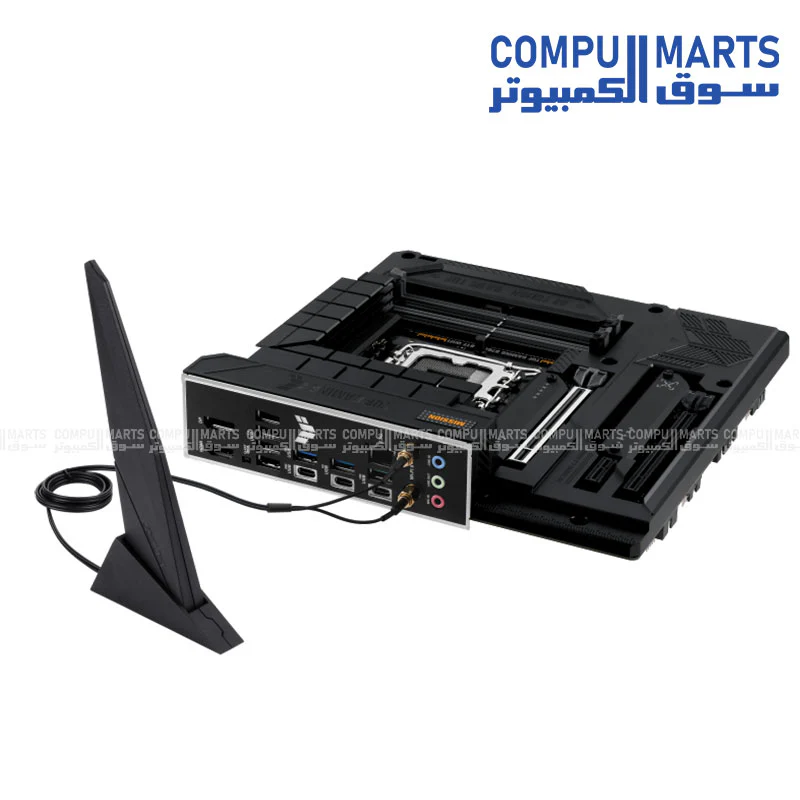

ASUS TUF GAMING B760M-BTF WIFI DDR5 mATX Motherboard – Intel LGA1700, PCIe 5.0, WiFi 6, 2.5Gb LAN
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B760M-BTF WIFI |
| CPU Socket | Intel® LGA1700 (14th, 13th & 12th Gen Core™ Processors) |
| Chipset | Intel® B760 |
| Memory Support | 4 x DIMM, Max. 192GB DDR5 (Up to 7200+ OC) | Dual Channel |
| Expansion Slots | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 1 x PCIe 4.0 x1 |
| Storage | 3 x M.2 PCIe 4.0 x4 slots | 4 x SATA 6Gb/s ports |
| Networking | Realtek 2.5Gb Ethernet | Wi-Fi 6 (802.11ax) | Bluetooth® v5.2 |
| Rear USB Ports | 1x USB 3.2 Gen 2x2 (Type-C) | 2x USB 3.2 Gen 2 | 3x USB 3.2 Gen 1 | 4x USB 2.0 |
| Front USB Support | 1x USB 3.2 Gen 2 (Type-C) | 2x USB 3.2 Gen 1 | 4x USB 2.0 |
| Display Output | 1 x HDMI 2.1 (4K@60Hz) | 1 x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Special Feature | BTF Design (Hidden Connectors) | ASUS Q-Design | M.2 Q-Latch |
| Form Factor | mATX (24.4 x 24.4 cm) |
$181.32
ASUS TUF GAMING B760M-BTF WIFI DDR5 mATX Motherboard – Intel LGA1700, PCIe 5.0, WiFi 6, 2.5Gb LAN—
$181.32
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B760M-BTF WIFI |
| CPU Socket | Intel® LGA1700 (14th, 13th & 12th Gen Core™ Processors) |
| Chipset | Intel® B760 |
| Memory Support | 4 x DIMM, Max. 192GB DDR5 (Up to 7200+ OC) | Dual Channel |
| Expansion Slots | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 1 x PCIe 4.0 x1 |
| Storage | 3 x M.2 PCIe 4.0 x4 slots | 4 x SATA 6Gb/s ports |
| Networking | Realtek 2.5Gb Ethernet | Wi-Fi 6 (802.11ax) | Bluetooth® v5.2 |
| Rear USB Ports | 1x USB 3.2 Gen 2x2 (Type-C) | 2x USB 3.2 Gen 2 | 3x USB 3.2 Gen 1 | 4x USB 2.0 |
| Front USB Support | 1x USB 3.2 Gen 2 (Type-C) | 2x USB 3.2 Gen 1 | 4x USB 2.0 |
| Display Output | 1 x HDMI 2.1 (4K@60Hz) | 1 x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Special Feature | BTF Design (Hidden Connectors) | ASUS Q-Design | M.2 Q-Latch |
| Form Factor | mATX (24.4 x 24.4 cm) |
