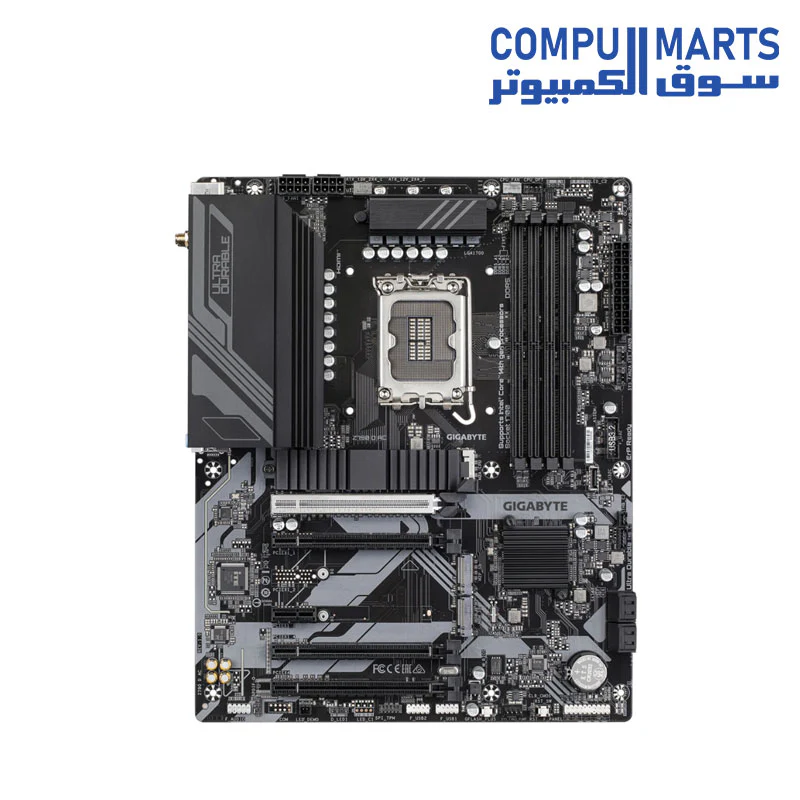

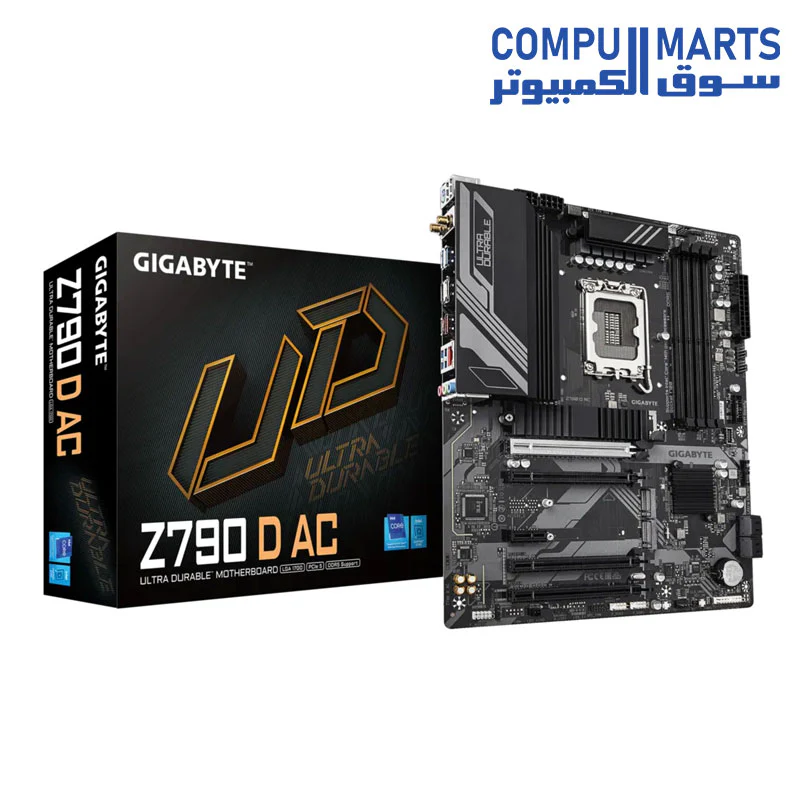

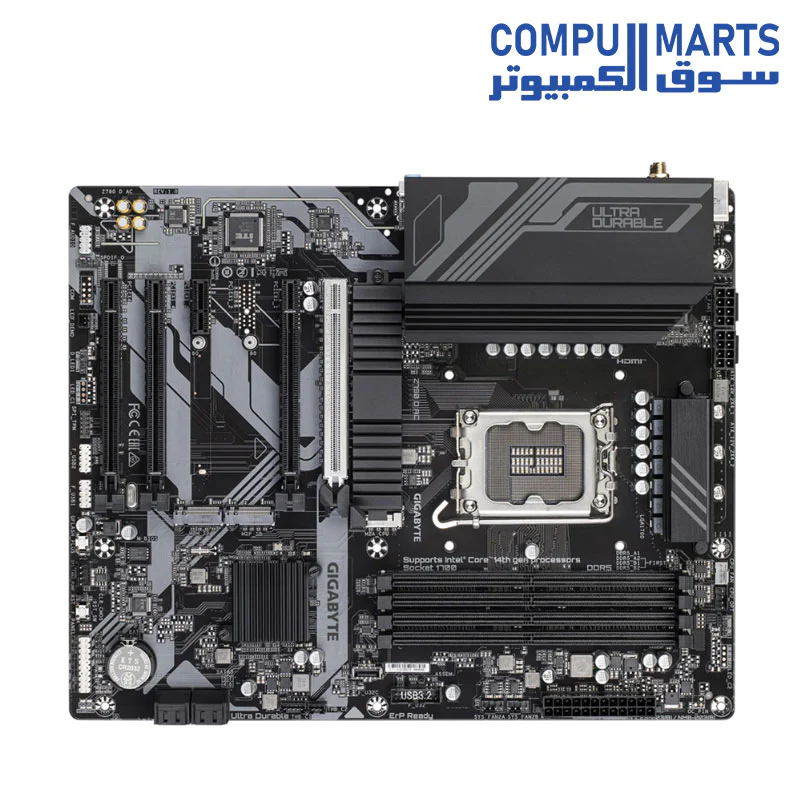

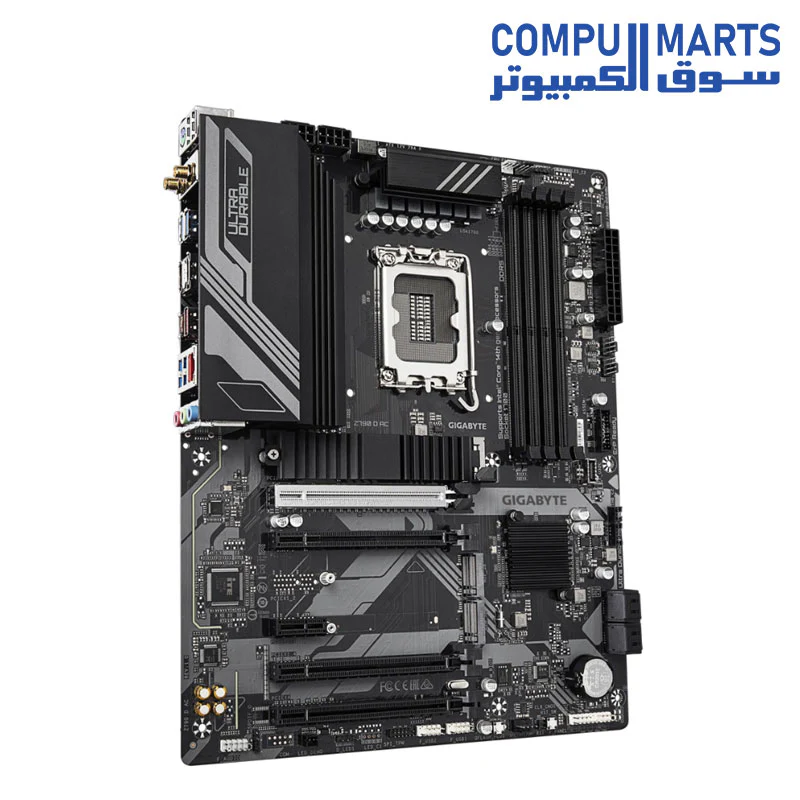

GIGABYTE Z790 D AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

GIGABYTE Z790 D AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

Category Specification Details
CPU Support LGA1700 socket for 14th, 13th, and 12th Gen IntelĀ® Coreā„¢, PentiumĀ® Gold and CeleronĀ® Processors
Chipset IntelĀ® Z790 Express Chipset
Memory 4 x DDR5 DIMM (Up to 256 GB); Support for up to 7600(O.C.) MT/s; Dual Channel; XMP Support
Onboard Graphics 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DisplayPort 1.2 (4096x2304@60 Hz)
Audio RealtekĀ® Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN RealtekĀ® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & BT IntelĀ® Wi-Fi AC 9560; 802.11a/b/g/n/ac (2.4/5 GHz); Bluetooth 5.1
Expansion Slots 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x4; 2 x PCIe 3.0 x1; 1 x PCIe 3.0 x1
Storage Interface 3 x M.2 (PCIe 4.0 x4/x2 support); 4 x SATA 6Gb/s; NVMe/SATA RAID 0, 1, 5, 10
USB (Back Panel) 1 x USB-C (3.2 Gen 2); 1 x USB 3.2 Gen 2 (Red); 4 x USB 3.2 Gen 1; 2 x USB 2.0/1.1
Internal I/O 1 x USB-C (3.2 Gen 1); 2 x Thunderboltā„¢ headers; 2 x Addressable LED headers; Q-Flash Plus button
Form Factor ATX Form Factor (30.5cm x 24.4cm)
$200.40
GIGABYTE Z790 D AC LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN, PCIe EZ-Latch, Multi-Keyā€”
$200.40

Product Information

Shipping & Returns

Description

Category Specification Details
CPU Support LGA1700 socket for 14th, 13th, and 12th Gen IntelĀ® Coreā„¢, PentiumĀ® Gold and CeleronĀ® Processors
Chipset IntelĀ® Z790 Express Chipset
Memory 4 x DDR5 DIMM (Up to 256 GB); Support for up to 7600(O.C.) MT/s; Dual Channel; XMP Support
Onboard Graphics 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x DisplayPort 1.2 (4096x2304@60 Hz)
Audio RealtekĀ® Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out support
LAN RealtekĀ® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & BT IntelĀ® Wi-Fi AC 9560; 802.11a/b/g/n/ac (2.4/5 GHz); Bluetooth 5.1
Expansion Slots 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x4; 2 x PCIe 3.0 x1; 1 x PCIe 3.0 x1
Storage Interface 3 x M.2 (PCIe 4.0 x4/x2 support); 4 x SATA 6Gb/s; NVMe/SATA RAID 0, 1, 5, 10
USB (Back Panel) 1 x USB-C (3.2 Gen 2); 1 x USB 3.2 Gen 2 (Red); 4 x USB 3.2 Gen 1; 2 x USB 2.0/1.1
Internal I/O 1 x USB-C (3.2 Gen 1); 2 x Thunderboltā„¢ headers; 2 x Addressable LED headers; Q-Flash Plus button
Form Factor ATX Form Factor (30.5cm x 24.4cm)
